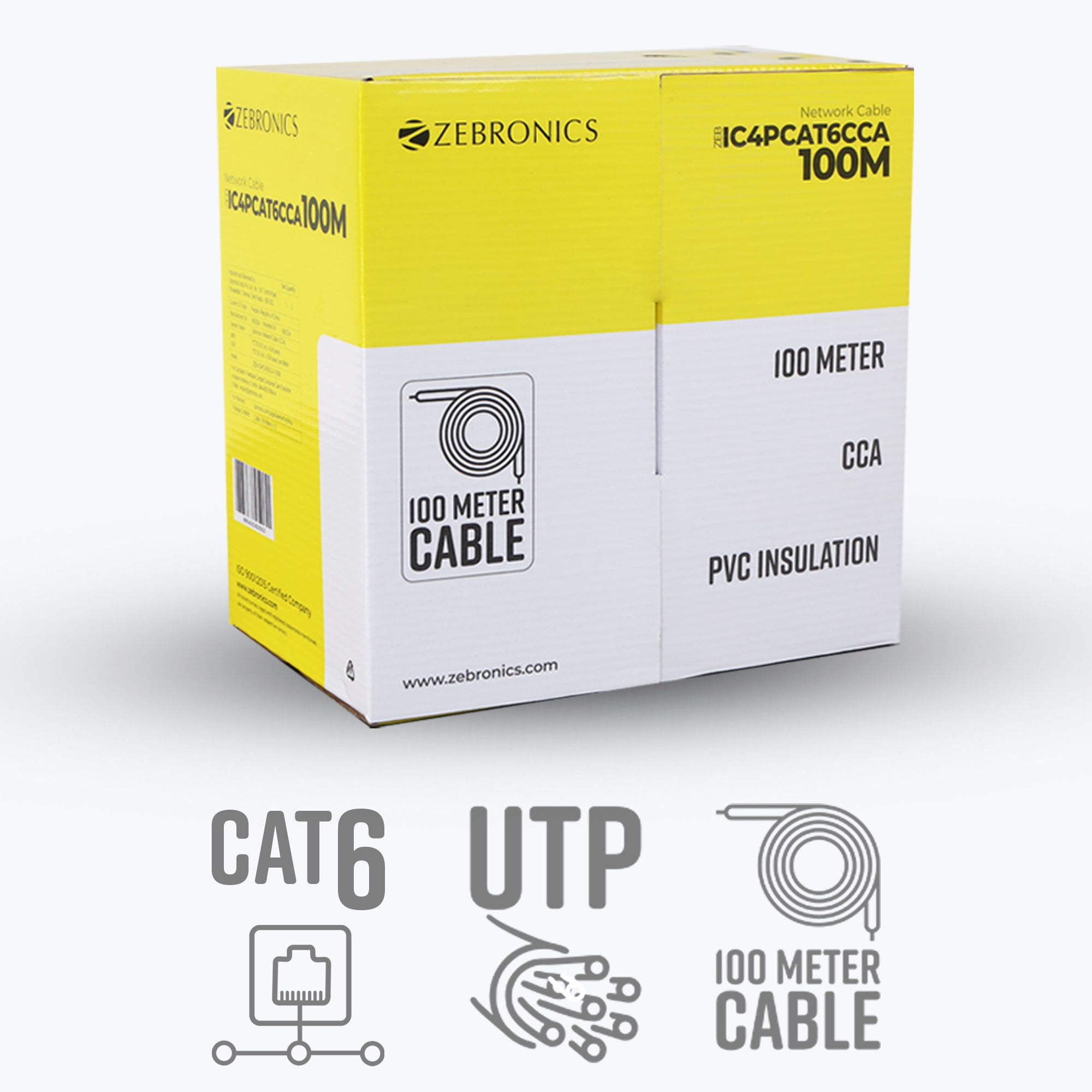

Zeb IC4PCAT6CCA-100M
₹
2,700
Product Description
CAT 6 | UTP | 100 meter | CCA | PVC Insulation
Specifications
| Model Name | ZEB-IC4PCAT6CCA-100M | |
| No. of wires | 4 pairs | |
| Cable length | 100 meter | |
| Conductor material | 24 AWG CCA | |
| Construction diameter | 0.5mm | |
| Insulation material | High Density Polyethylene | |
| Insulation thickness | 0.02mm | |
| Insulation diameter | 0.92mm ±0.01 mm | |
| Jacket material | PVC | |
| Jacket thickness | 0.2 mm | |
| Jacket diameter | 6.1mm | |
| Jacket color | Gray | |
| Separator | PE Central cross separator | |
| Conductor resistance | <9.38Ω/km at 20°C | |
| Weight | 3.45 Kg | |
| Country of Origin | PRC | |
| Mechanical Properties | ||
| Operation Temperature | -20°C to +70°C | |
| Storage Temperature | -40°C to +50°C | |
| Bending Radius | <25.4 mm at -20°C to ±1°C | |
| Pulling Force | 11.5 Kgs | |
| Package Content | ||
| Cable | 100 Meter x 1U |
