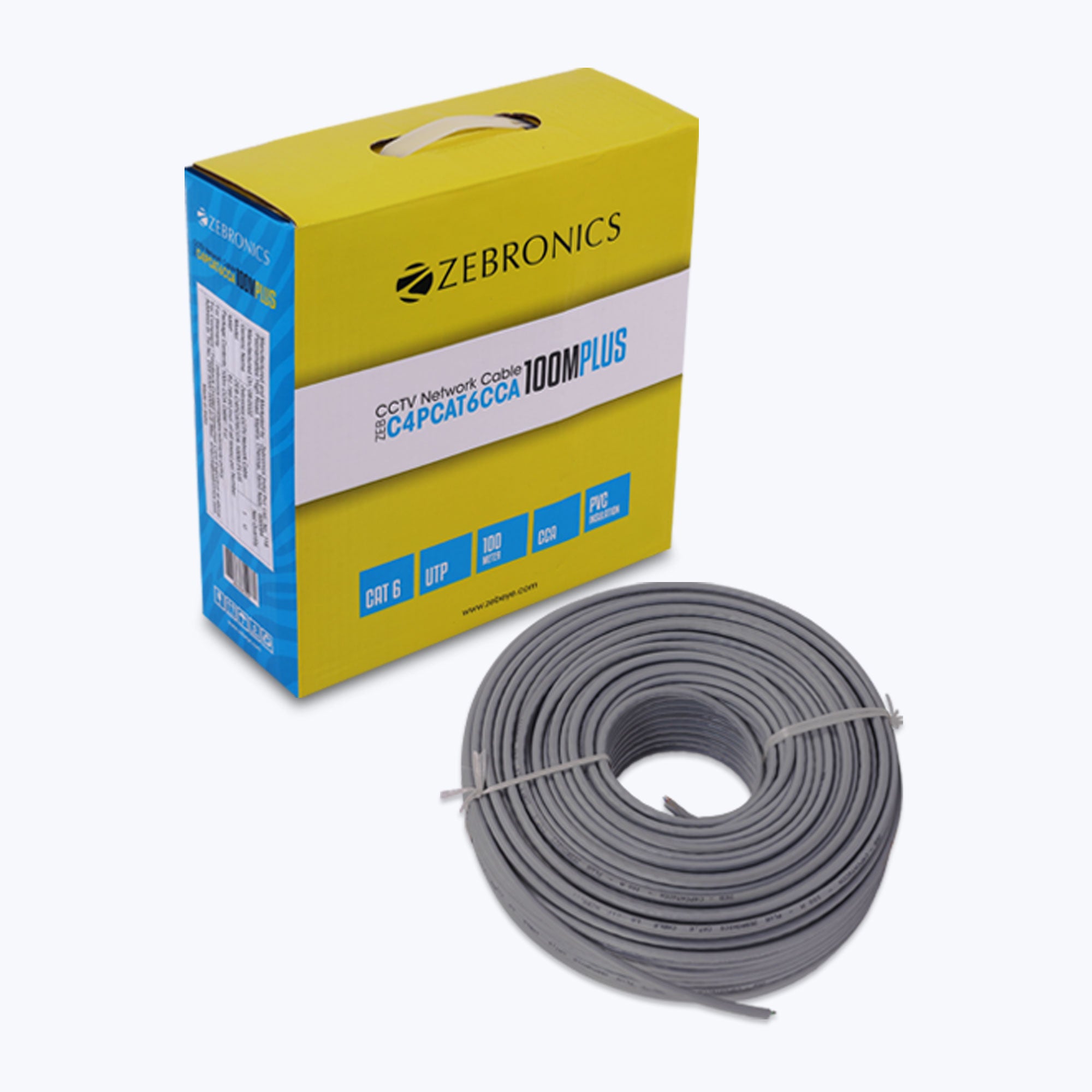

Zeb C4PCAT6CCA-100M-Plus
₹
2,799
Specifications
| Model Name | ZEB-C4PCAT6CCA-100M-PLUS |
| No. of wires | 4 pairs |
| Cable length | 100 meter |
| Conductor material | 24 AWG Solid Bare CCA |
| Construction diameter | 0.508mm |
| Insulation material | PE |
| Insulation thickness | 0.2mm |
| Insulation diameter | 0.90mm |
| Jacket material | PVC |
| Jacket thickness | 0.65mm |
| Jacket diameter | 6.1mm |
| Jacket color | Gray |
| Separator | PE Central cross separator |
| Conductor resistance | <93.8Ω/km at 20°C |
| Weight | 3.26Kg |
| Country of Origin | India |
| Mechanical Properties | |
| Operation Temperature | -10°C to +60°C |
| Storage Temperature | 0°C to +50°C |
| Bending Radius | <25.4 mm at -20°C to ±1°C |
| Pulling Force | 8 Kgs |
