Zeb HDTVI D5

	Camera
	Minimum illumination	0.005lux @F1.2, AGC ON; 0 lux ( LED ON)
	Image Sensor	1/2.5" CMOS sensor
	Shutter speed	1/50(1/60) to 1/100,000 seconds
	Angle of view	2.8mm: Horizontal: 96°; Vertical: 53°; Diagonal: 112°
	Scanning system	PAL/NTSC
	Lens
	Focus Length	2.8mm (Fixed)
	Mount Type / Lens	M12
	Focus Control	Fixed
	Lens Type	Fixed
	Lens	2.8mm
	Max. Aperture	F1.6

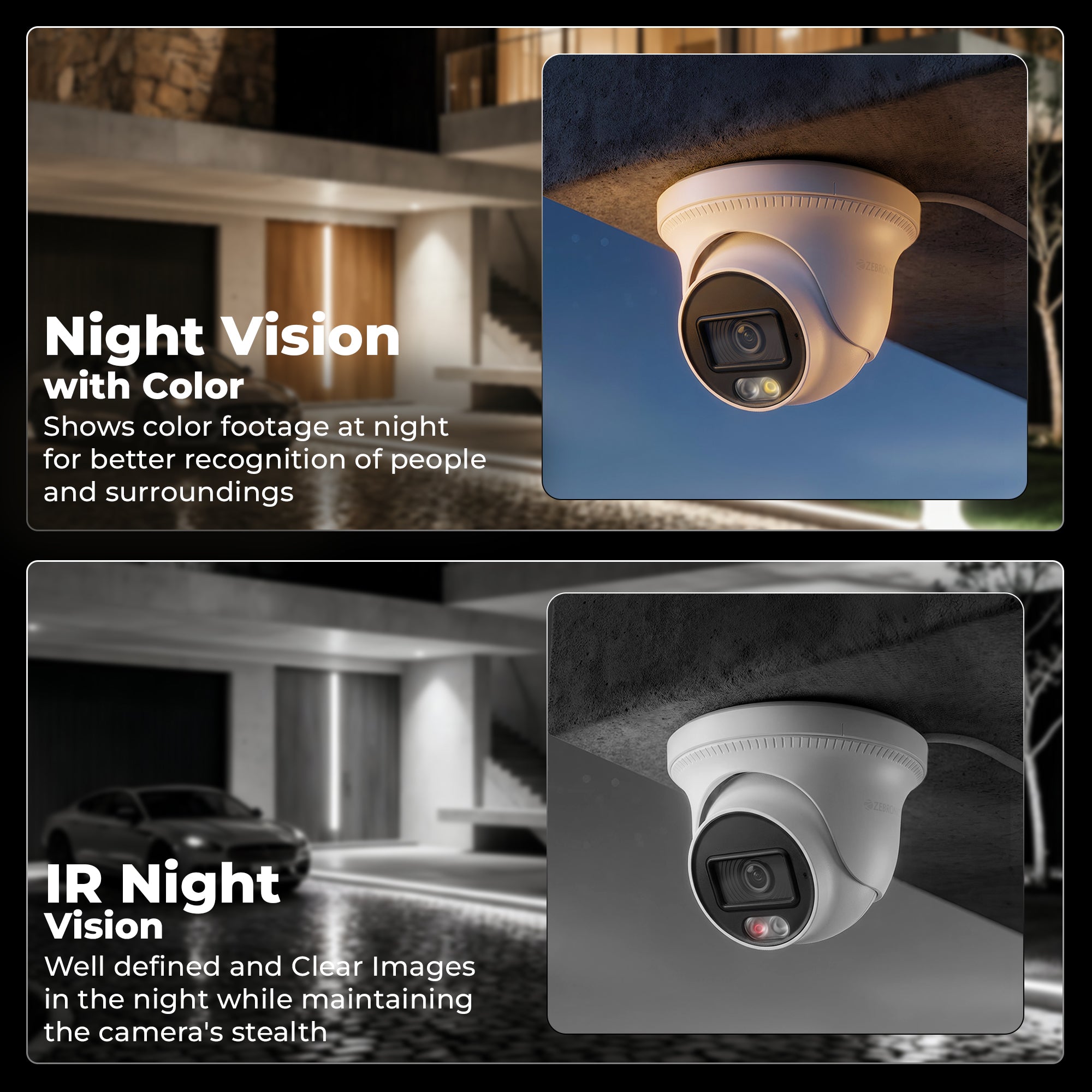

	Night Vision
	IR Cut filter	Yes
	IR Range	20-30m
	IR Power On	Auto Control
	Camera Features
	OSD Support	Yes
	No of IR LEDs	1 IR + 1 Warmlight LED
	Day/Night	Yes
	Noise Reduction	Yes
	Picture Adjustment	Yes
	WDR	Yes (D-WDR)
	White Balance	Automatic
	AGC (Gain Control)	Yes
	ICR (Infrared Cut Removable Filter)	Auto(ICR)/Color/B/W
	Back Light Compensation	Yes
	Video output	TVI:2944×1656@20fps, 2560×1440@25/30fpsAHD:2944×1656@20fps, 2560×1440@25/30fpsCVI:2560×1440@25/30fpsCVBS:PAL/NSTC

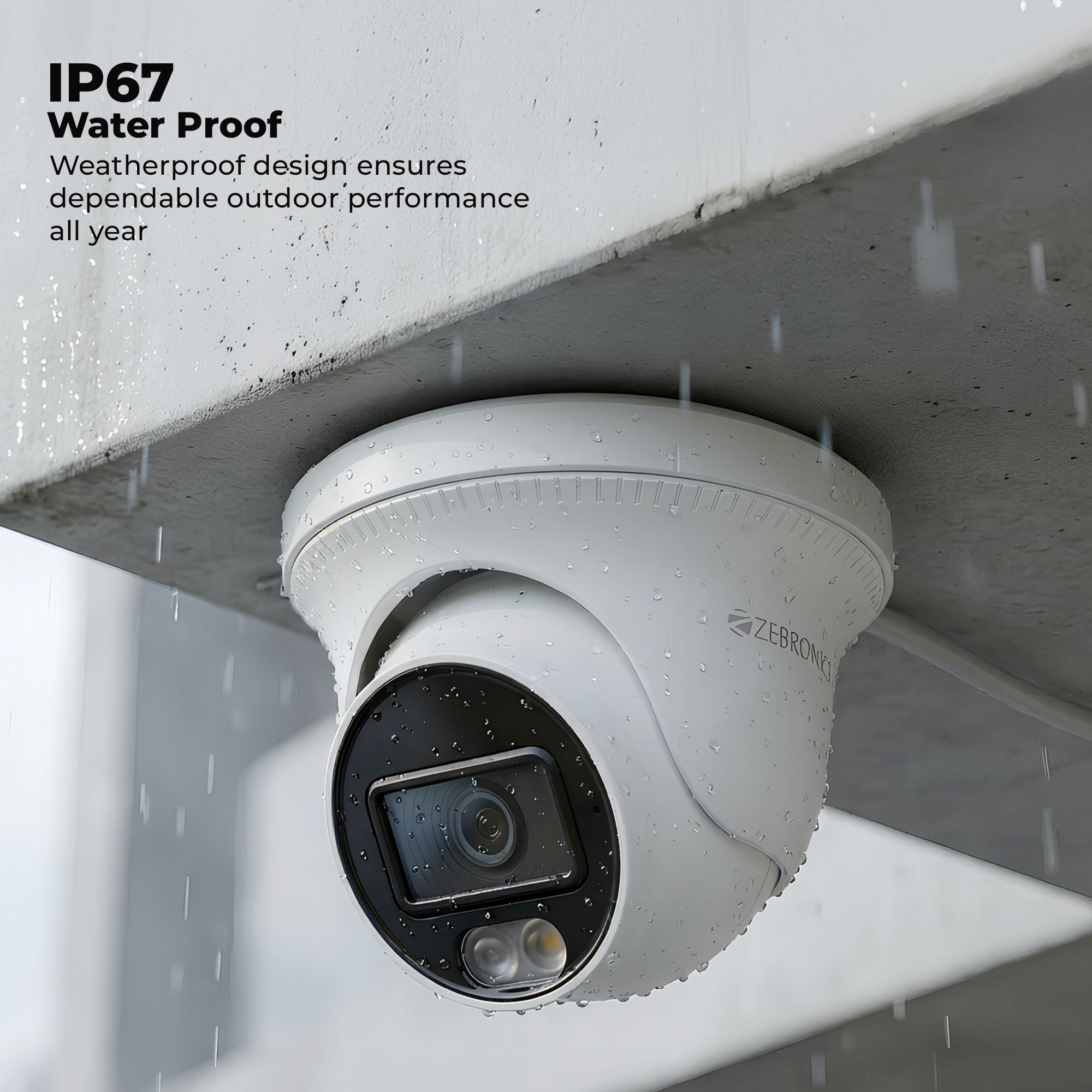

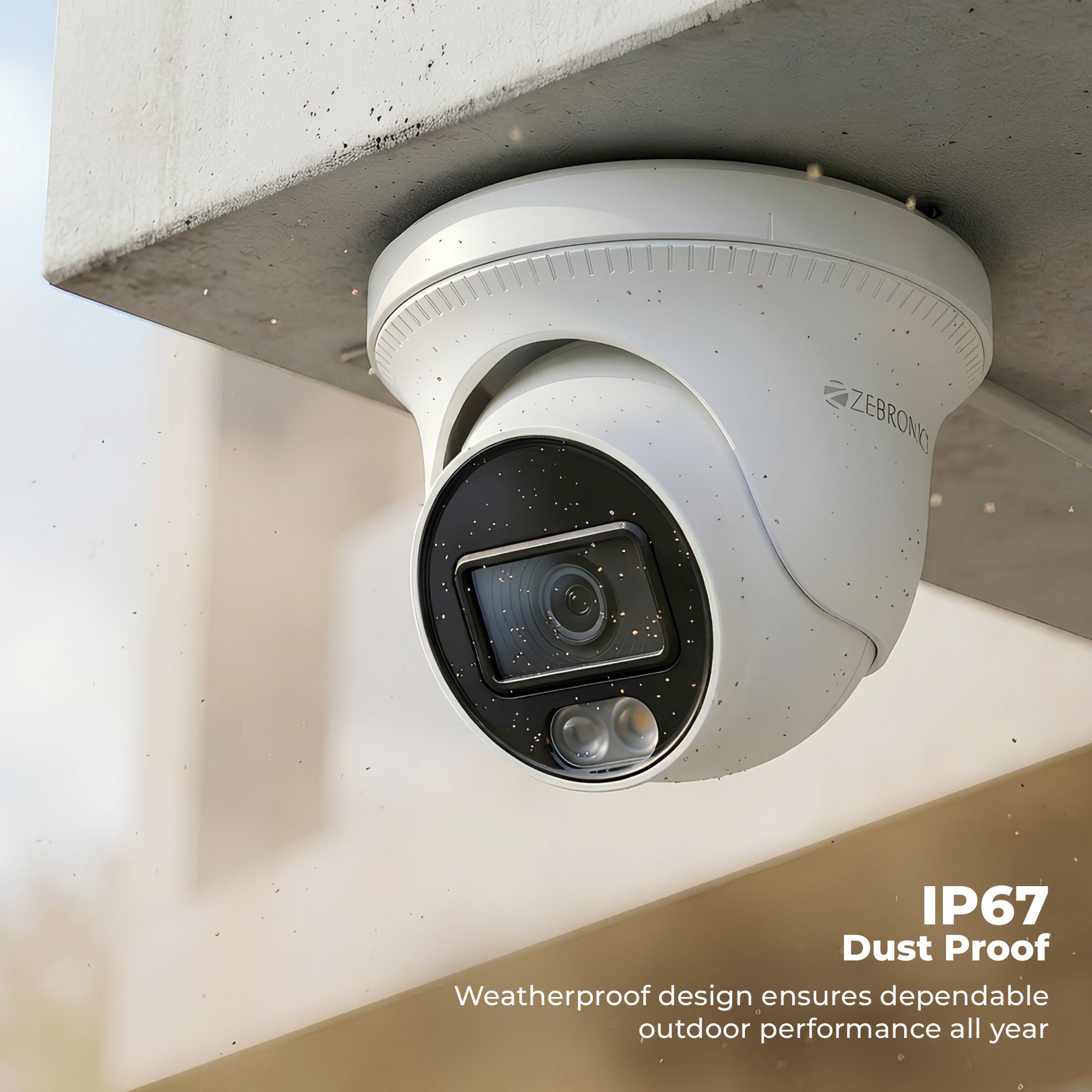

	Weatherproof Standard	IP67
	S/N Ratio	>52dB (AGC OFF)
	General
	Power Consumption	DC12V±10%
	Operating Temperature	-10°C~40°C/ Less than 90%RH
	Weight	252g
	Body type	ABS Plastic
	Dimension (Dia x H)	11.3 x 8.4 cm
Package Dimension(W x D x H)	13.5 x 13.5 x 11.5 cm
	Country of Origin	India
	Package Contents
	CCTV Camera	1 U
	Mounting Kit	1 U
	QR Code User Manual	1 U
