Zeb AHDPBSL24

	Camera
	Image processor	1/2.9" 5MPL hd cmos sensor
	Minimum illumination	Color : 0.01 lux@F2.0, AGC ONB/W : 0 lux with IR
	Image Sensor	1/2.9" cmos sensor
	Shutter speed	1/50(1/60) to 1/100,000 seconds
	Angle of view	3.6 mm: 100° x 84° x 45° (diagonal x horizontal x vertical)
	Scanning system	Progressive Scan
	Lens
	Focus Length	3.6 mm (Fixed)
	Mount Type / Lens	M12
	Focus Control	Fixed
	Lens Type	Removable
	Auto Iris	Support
	Lens	3.6mm
	Max. Aperture	F2.0
	Night Vision
	IR Cut filter	Yes
	IR Range	20M
	IR Power On	Auto Control
	Camera Features

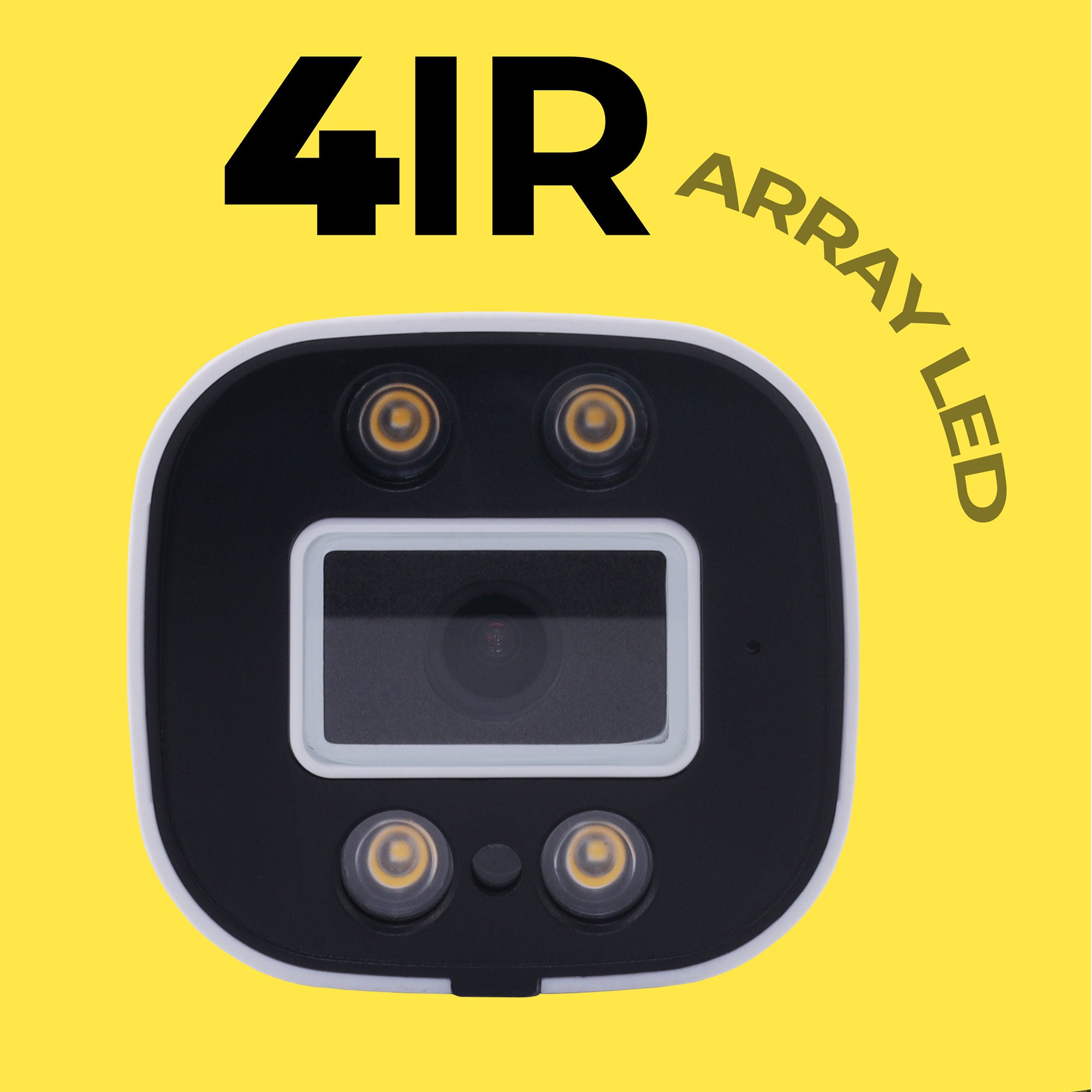

	No of IR LEDs	4 array IR LED
	Day/Night	Support
	Noise Reduction	3D NR
	Picture Adjustment	Yes
	WDR	Yes
	White Balance	Automatic
	AGC (Gain Control)	Auto / Manual
	ICR (Infrared Cut Removable Filter)	Auto(ICR) / Color / B/W
	Back Light Compensation	BLC / HLC / WDR
	Video output	CVI: (1920x1080p) @25/30fps; 720p@25/30fps;AHD: (1920x1080p) @25/30fps; 720p@25/30fpsTVI: (1920x1080p) @25/30fps; 720p@25/30fps;CVBS: 960H(PAL/NTSC)
	Video Compression	H.265
	Weatherproof Standard	IP66 Weather-Proof
	S/N Ratio	>50dB
	General
	Power Consumption	DC12V±10%, 500mA
	Operating Temperature	10°C ~ +60°C/ Less than 95%RH
	Weight	190g
	Body type	ABS Plastic
	Dimension (W xD x H)	5.7 x 19.1 x 5.4 cm
	Country of Origin	India
	Package Contents
	CCTV Camera	1 U
	Mounting Kit	1 U
	QR Code User Manual	1 U
