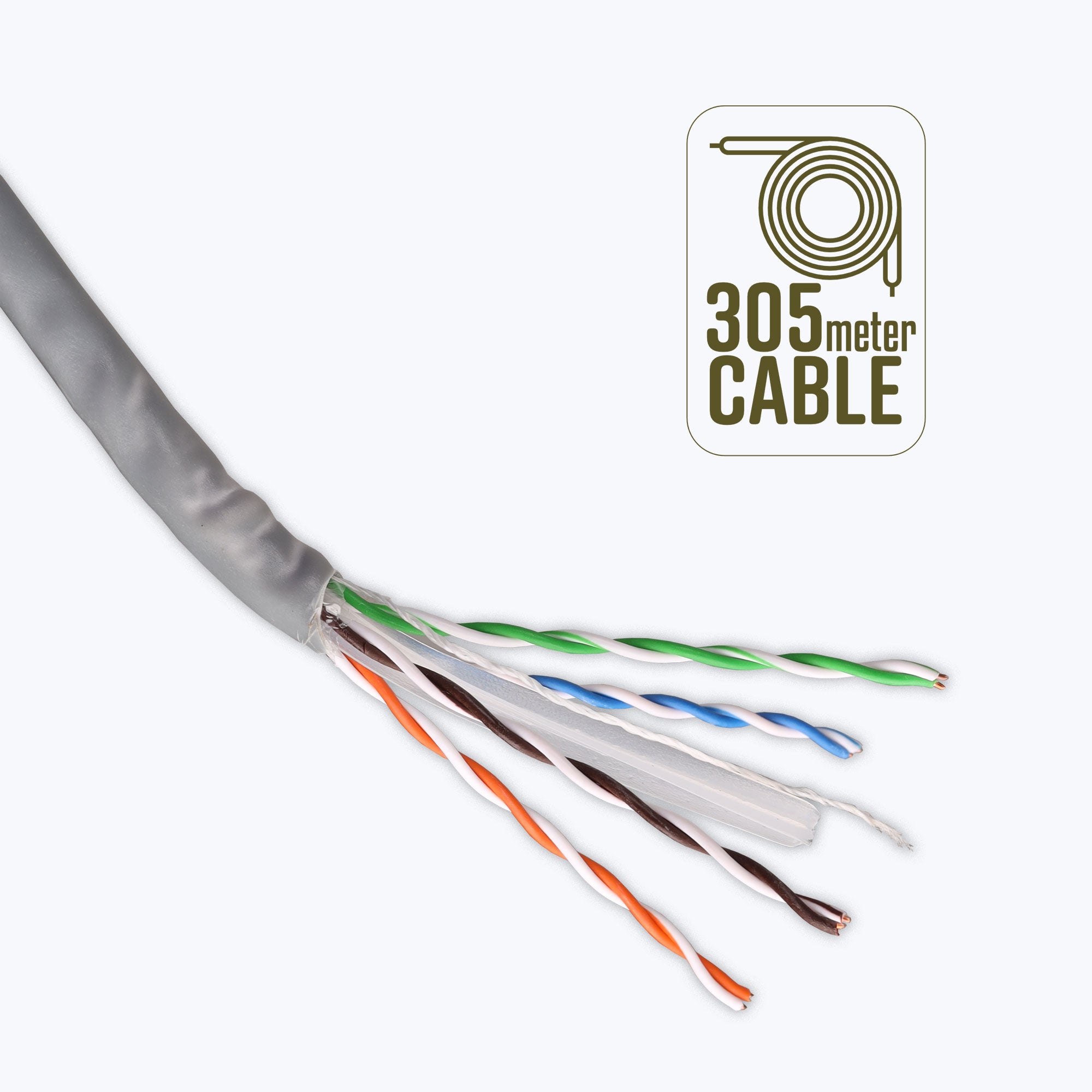

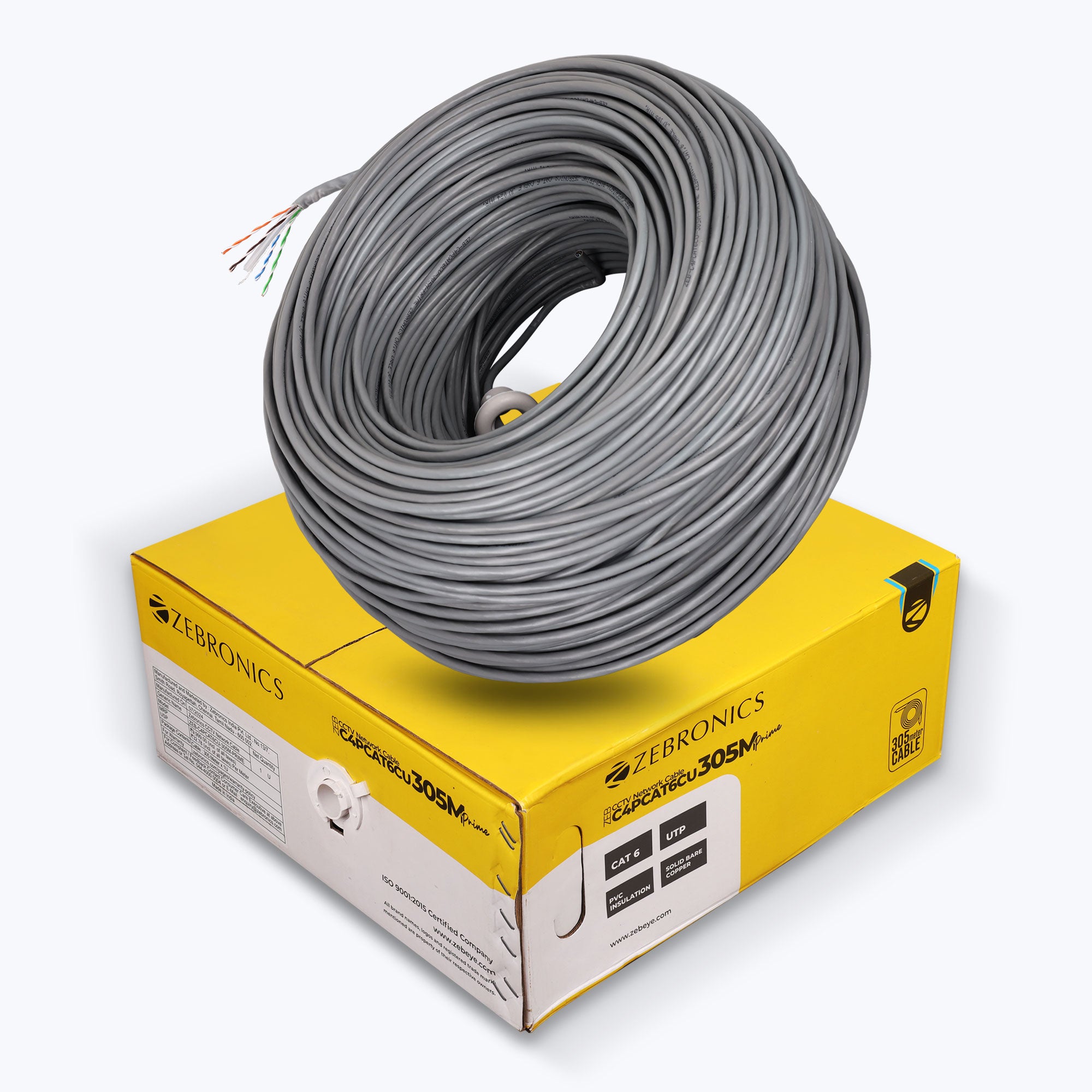

Zeb C4PCAT6CU-305M-Prime
₹
9,999
Specifications
| Model Name | ZEB-C4PCAT6CU-305M-PRIME | |
| No. of wires | 4 pairs | |
| Cable length | 305 meter | |
| Conductor material | 25 AWG Solid Bare Copper | |
| Construction diameter | 0.45mm | |
| Insulation material | High Density Polyethylene | |
| Insulation thickness | 0.2mm | |
| Insulation diameter | 0.90mm | |
| Jacket material | PVC | |
| Jacket thickness | 0.2mm | |
| Jacket diameter | 6.1mm | |
| Jacket color | Gray | |
| Separator | PE Central cross separator | |
| Conductor resistance | <9.38Ω/km at 20°C | |
| Weight | 10.25 Kg | |
| Country of Origin | India | |
| Mechanical Properties | ||
| Operation Temperature | -10°C to +70°C | |
| Storage Temperature | 0°C to +50°C | |
| Bending Radius | <25.4 mm at -20°C to ±1°C | |
| Pulling Force | 11.5 Kgs | |
| Packing Contents | ||
| Cable | 305 Meter x 1U |
