Zeb 8PPM2UM - 8 Port POE Switch
₹
3,999
Product Description

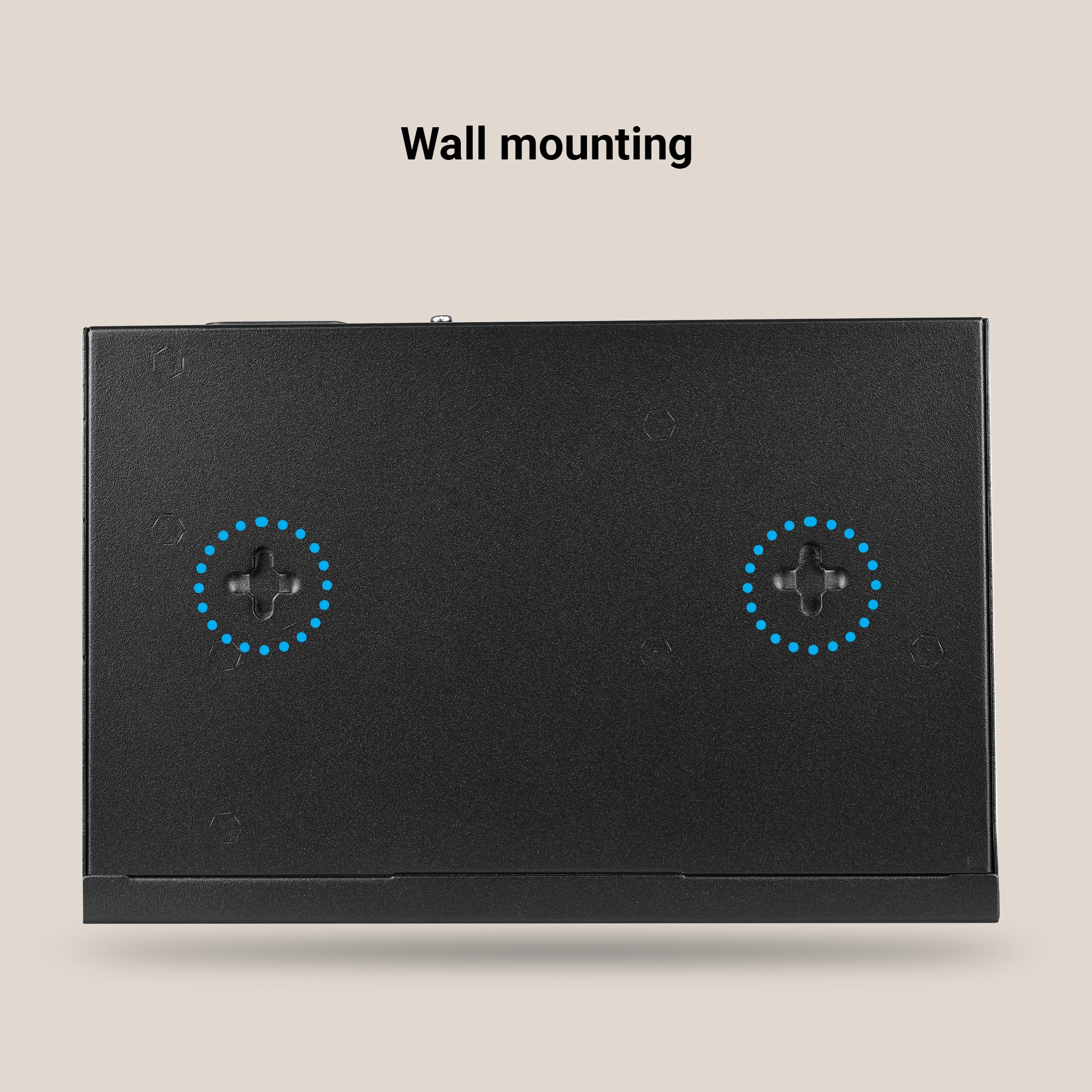

8 Self Adaptive PoE Ports | Dual 100M Uplink Ports | 250M Extended Transmission (Max.) | 120W Output (Max.) | Upto 30W Per Port | Full Duplex | High Data Rate | Wide Compatibility | Flexible Mounting | Dynamic Power Control | Short Circuit Protection | Voltage Protection | Anti Interference Capability | Lightning Protection
Specifications

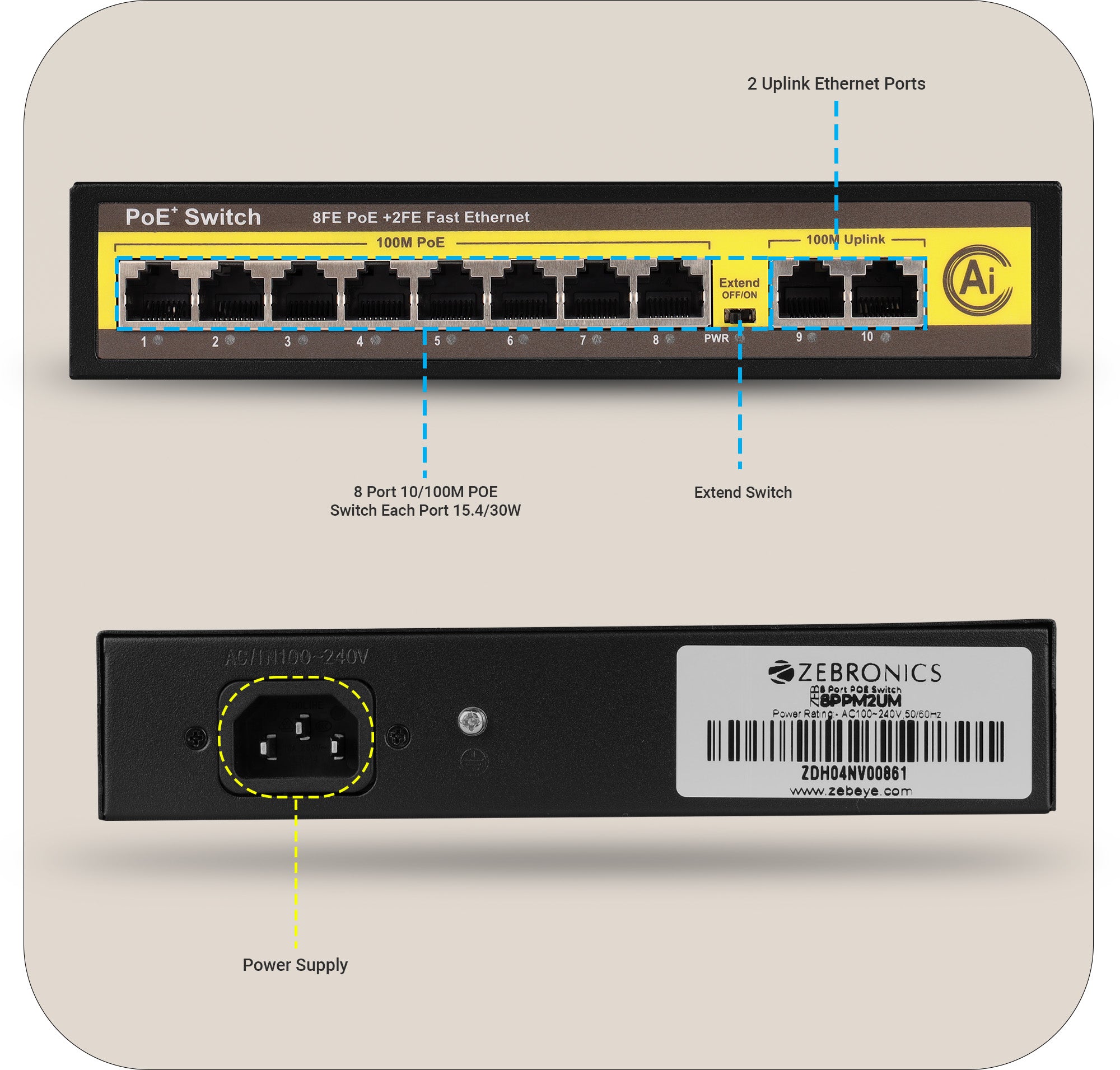

| Connector Type | 8 Ports 10/100M PoE + 2 Ports 10/100M Ethernet Uplink | |
| Network Protocols | IEEE802.3, IEEE802.3u, IEEE802.3x | |
| PoE Parameters | PoE Standard: IEEE802.3af (15.4W) & IEEE802.3at (30W)PoE Compatibility: IEEE802.3af/at Self AdaptivePower Pin Assignment : MODE A [1/2(+), 3/6(-)] | |
| Network Media | 10BASE-T: Cat 3,4,5 UTP (<100 Meters)10BASE-T: Cat 6 UTP (=<250 Meters)100BASE-TX: Cat5 or more UTP (<100 Meters) | |
| Power Supply | Input: AC100-240V, 50/60HzOutput: 30W Per Port Power Budget: 120W | |
| Performance Specification | Bandwidth: 5.6GbpsMAC: 1KPacket Buffer Memory: 1 Mbits10M Packet Forwarding Rate: 14880pps/port100M Packet Forwarding Rate: 148800pps/port | |
| LED Indicator | Power (Red): Lit - Powered, Unlit - No Power Ethernet : Flash - Data Transmit, Unlit - Disconnect | |
| Working Environment | Operating Temperature: -20°C ~ 50°CStorage Temperature: -45°C ~ 85°COperating Humidity: Max 10 ~ 90%, Non-Condensing Storage Humidity: Max 5 ~ 95%, Non-Condensing | |
| Physical Parameter | ||
| Product Dimension (W x D x H) | 20 x 14 x 4.5 cm | |
| Package Dimension (W x D x H) | 27.5 x 16.5 x 5.4 cm | |
| Net. Weight | 700g | |
| Transmission Distance | Data Transmission Distance: 250m (Max.)PoE distance upto 250meters with 10M via Cat.6 | |
| Port Surge Protection | 6KV | |
| Forwarding Mode | Store-&-Forward | |
| Country of Origin | India | |
| Package Contents | ||
| Ethernet Switch | 1U | |

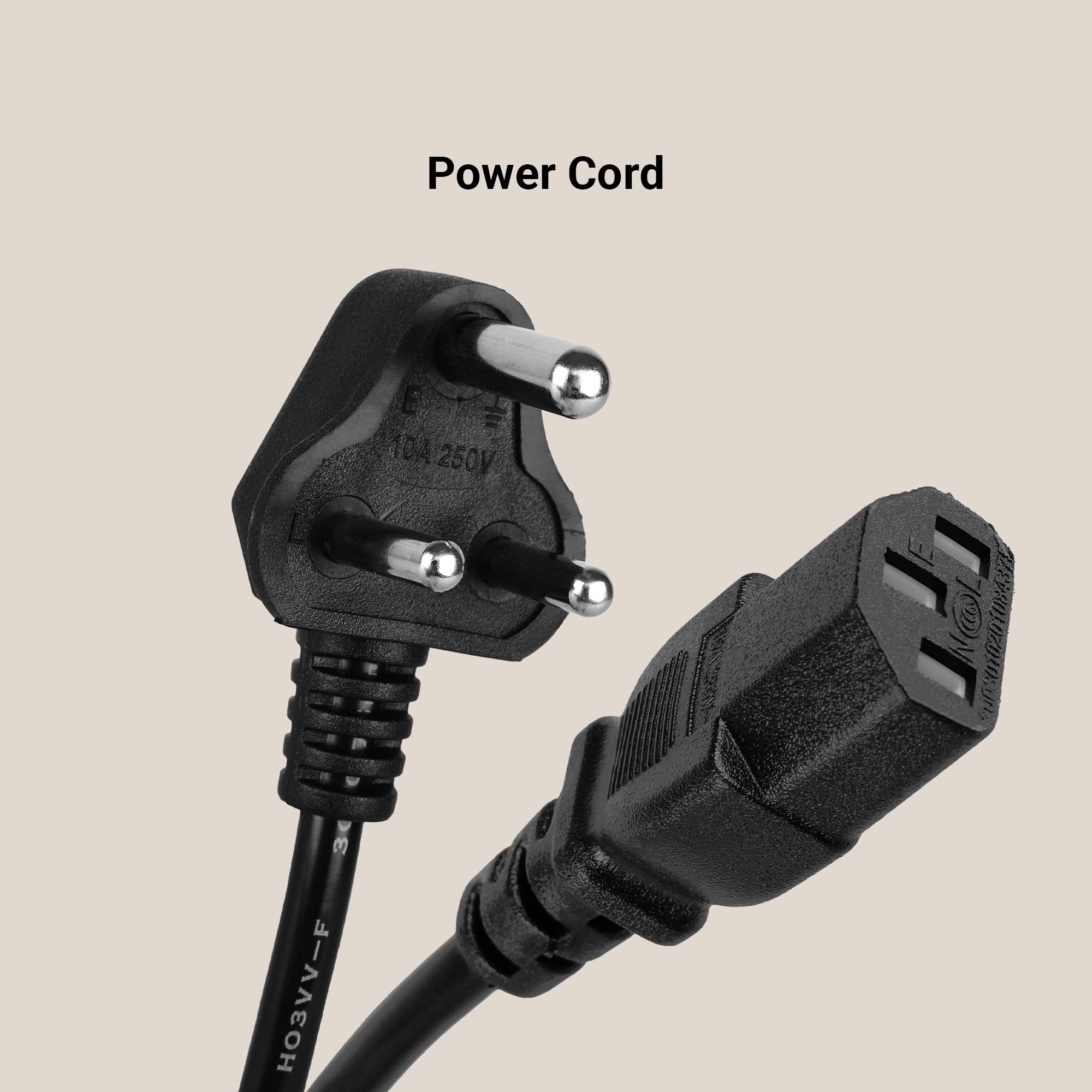

| Power Cord | 1U | |
| QR Code Guide | 1U |
