Zeb 16PPM2UGS - 16 Port POE Switch
₹
14,999
Product Description

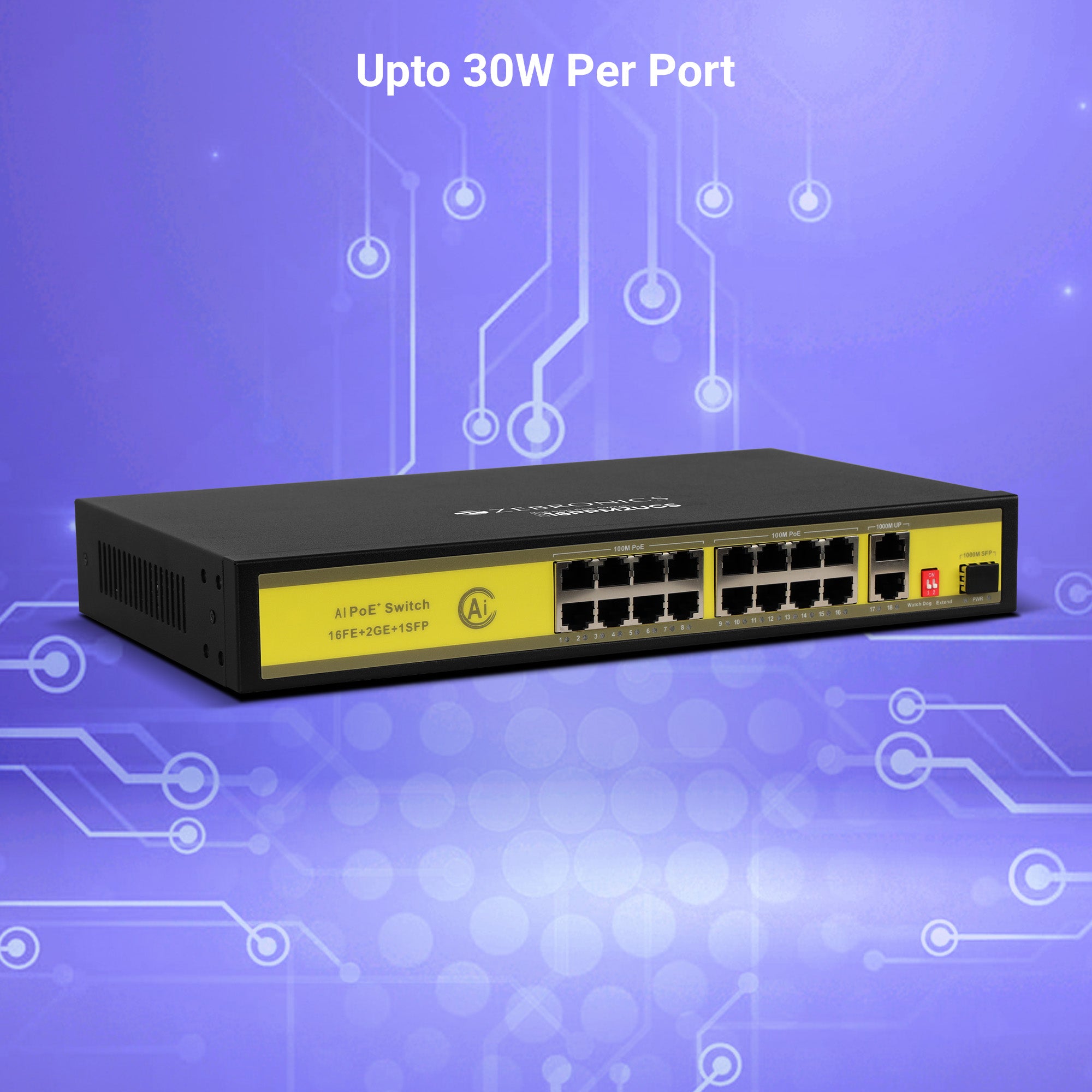

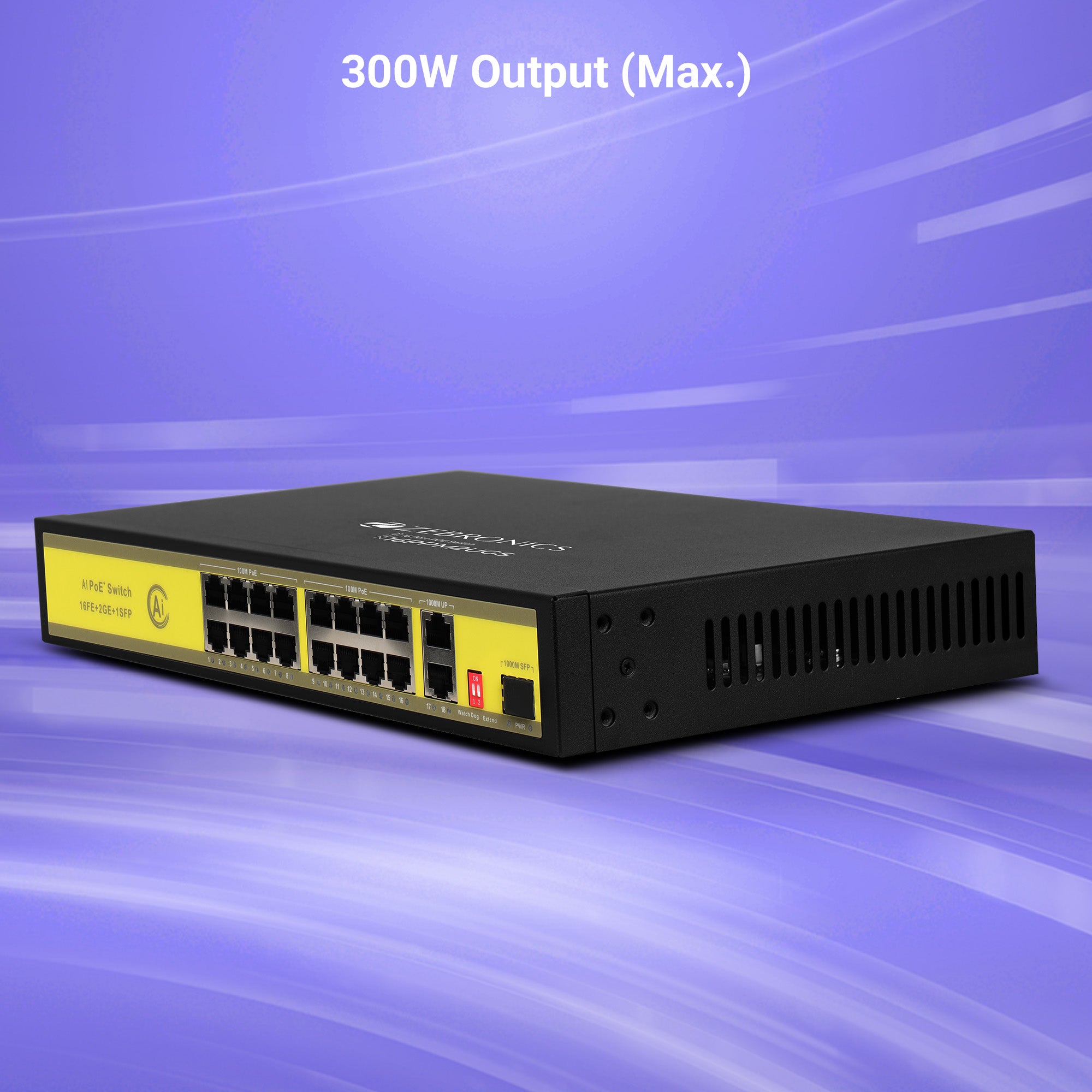

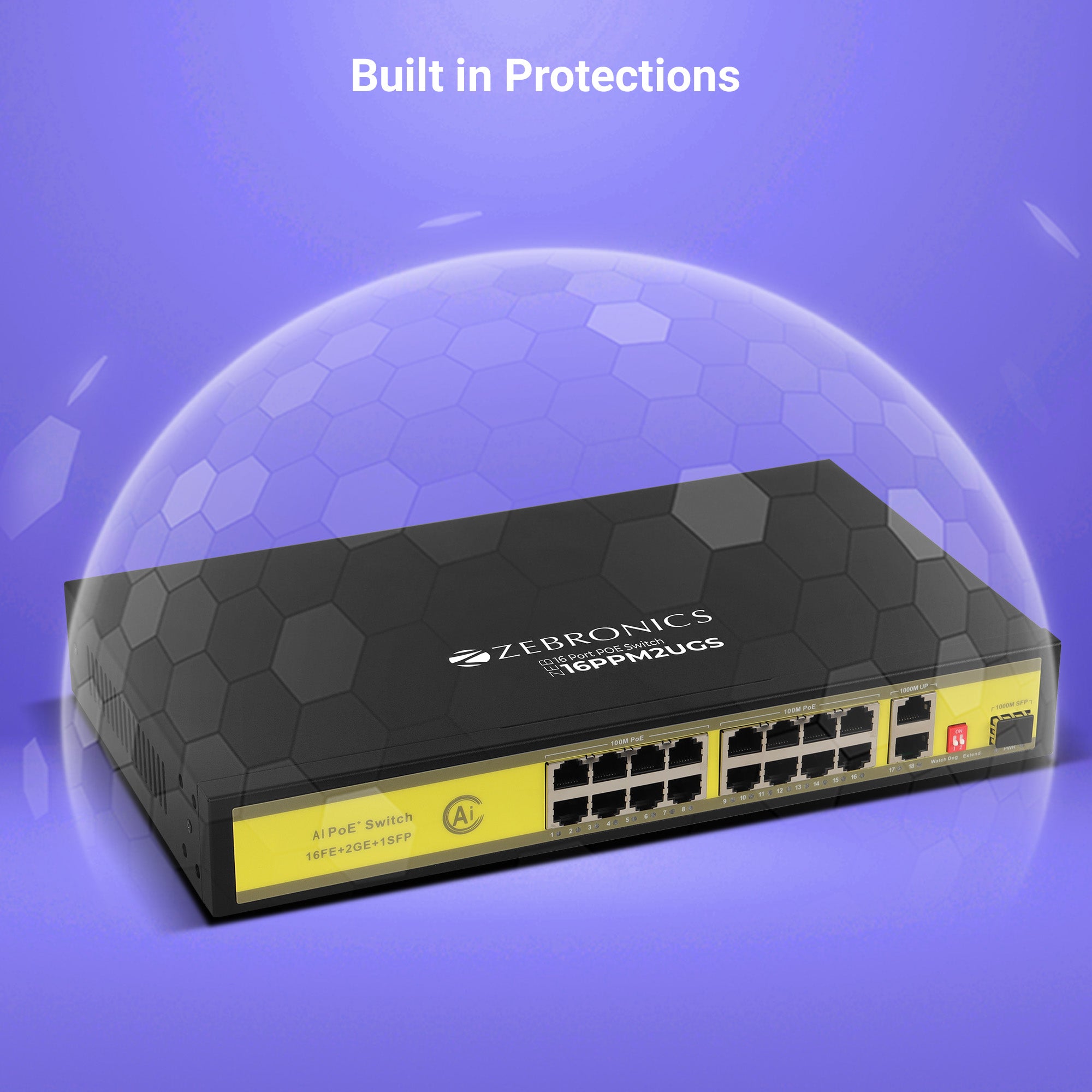

16 Self Adaptive PoE Ports | Dual Gigabit Uplink Ports | 300W Output (Max.) | SFP port | Upto 30W Per Port | High Data Rate | Wide Compatibility | Short Circuit Protection | Anti Interference Capability | Lightning Protection | Dynamic Power Control
Specifications

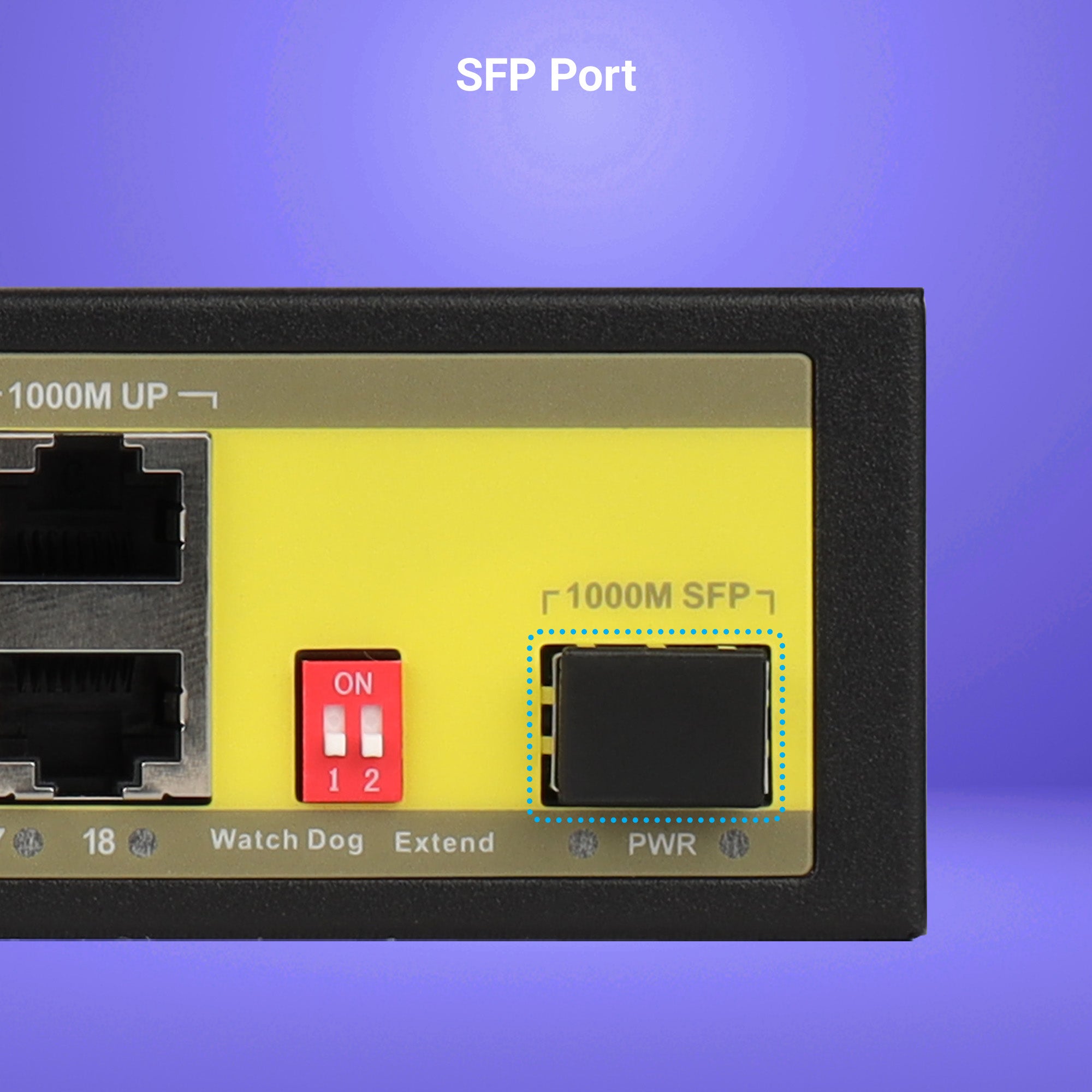

| Connector Type | 16 Ports 100M PoE + 2 Ports 1000M Ethernet Uplink + 1 SFP port | |
| Network Protocols | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab | |
| PoE Parameters | PoE Standard: IEEE802.3af (15.4W) & IEEE802.3at (30W) PoE Compatibility: IEEE802.3af/at Self AdaptivePower Pin Assignment : MODE A [1/2(+), 3/6(-)] | |
| Network Media | 10BASE-T: <250 meters100BASE-TX: <100 meters | |
| Power Supply | Input: AC110-240V, 50/60Hz Output: 30W Per Port Power Budget: 300W | |
| Performance Specification | Bandwidth: 9.2GbpsMAC: 2KPacket Buffer Memory: 1 Mbits10M Packet Forwarding Rate: 14880pps/port100M Packet Forwarding Rate: 148800pps/port | |

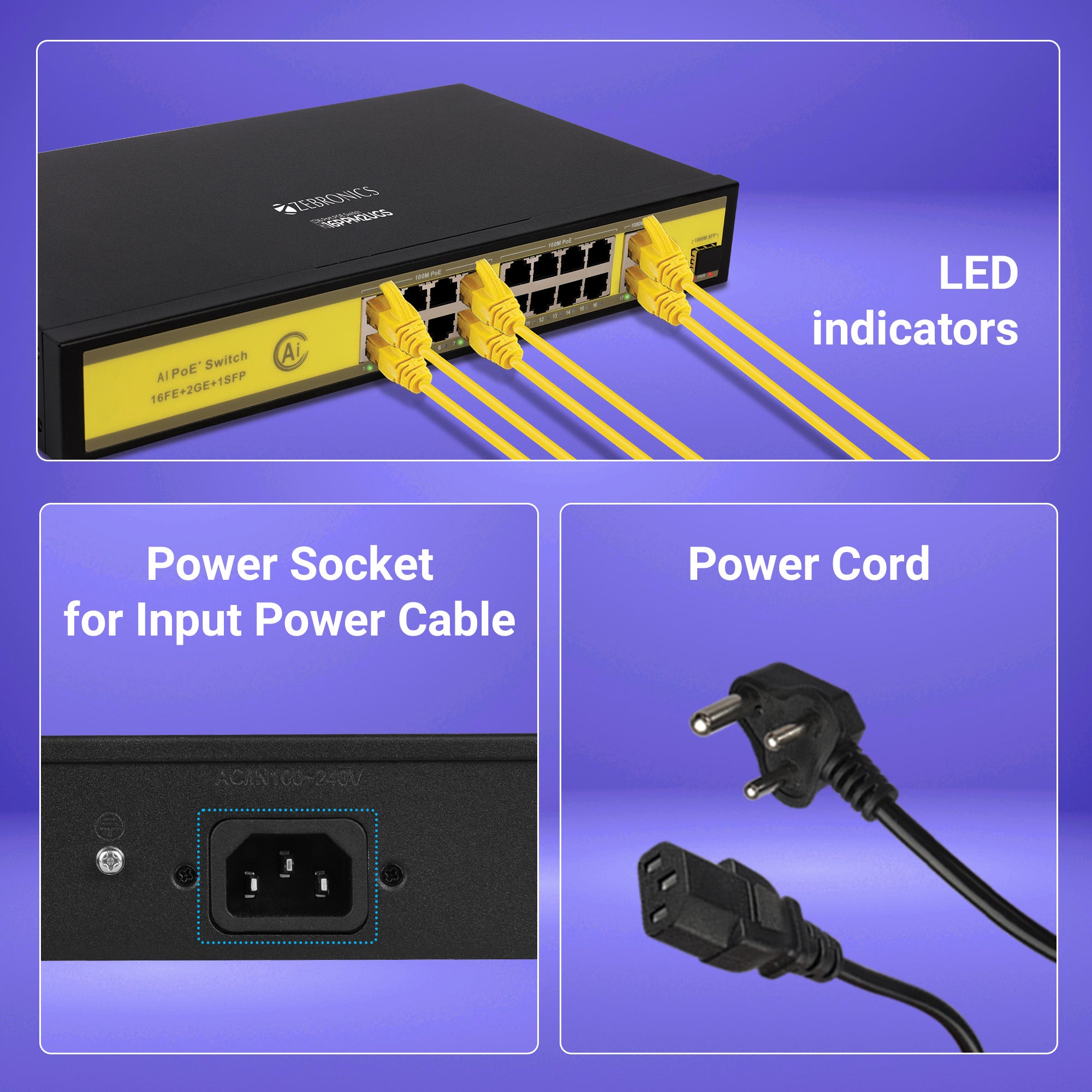

| LED Indicator | Power (Red): Lit - Powered, Unlit - No Power Ethernet : Flash - Data Transmit, Unlit - Disconnect | |
| Working Environment | Operating Temperature: 25°C ~ 50°CStorage Temperature: 20°C ~ 70°COperating Humidity: Max 15 ~ 90%, Non-Condensing Storage Humidity: Max 10 ~ 95%, Non-Condensing | |
| Physical Parameter | Product Dimension (W x D x H) : 31.1 x 18.3 x 4.6 cmPackage Dimension: (W x D x H) : 34.1 x 26.3 x 7.8 cmNet. Weight: 1.53 Kg | |
| Transmission Distance | Data Transmission Distance: 250 (Max.)PoE distance upto 250 meters with 10m via Cat.6 | |
| Port Surge Protection | 4KV | |
| Forwarding Mode | Store & Forward | |
| Country of Origin | India | |
| Package Contents | ||
| Ethernet Switch | 1 U | |
| Power Cord | 1 U | |
| QR Code Guide | 1 U | |

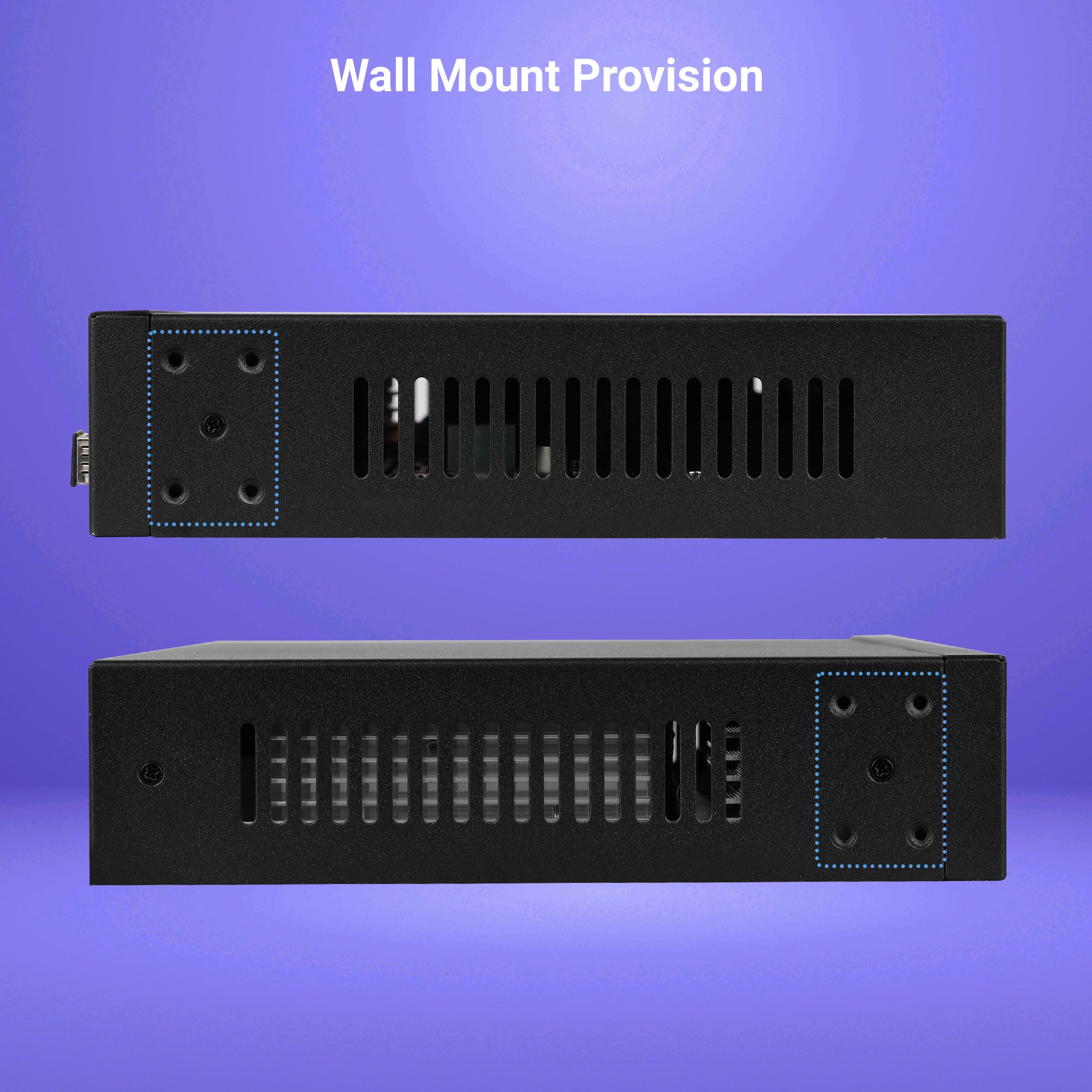

| Wall Mount Kit | 1 Set |
