Zeb 8PPG2UGS - 8 Port POE Switch
₹
9,999
Product Description

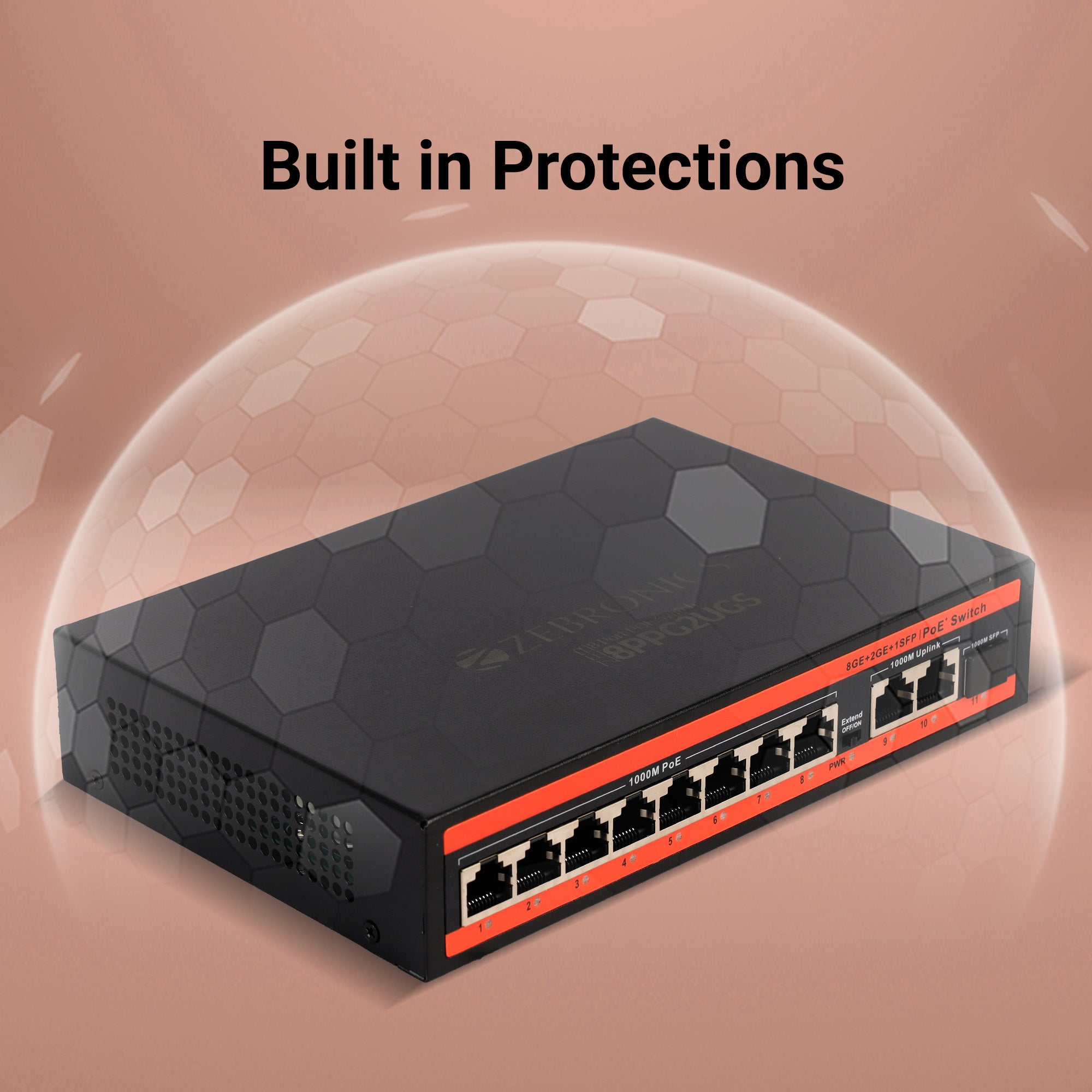

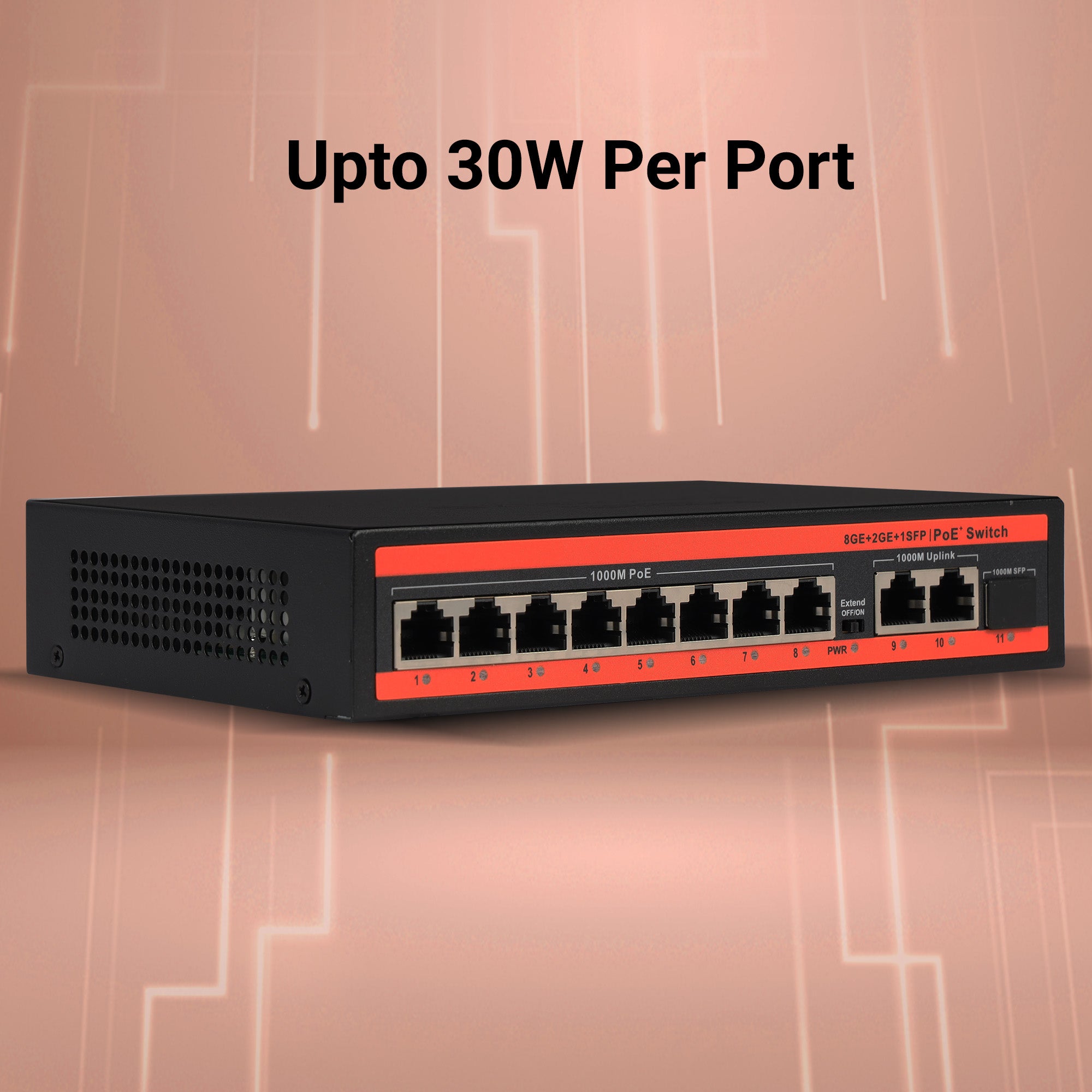

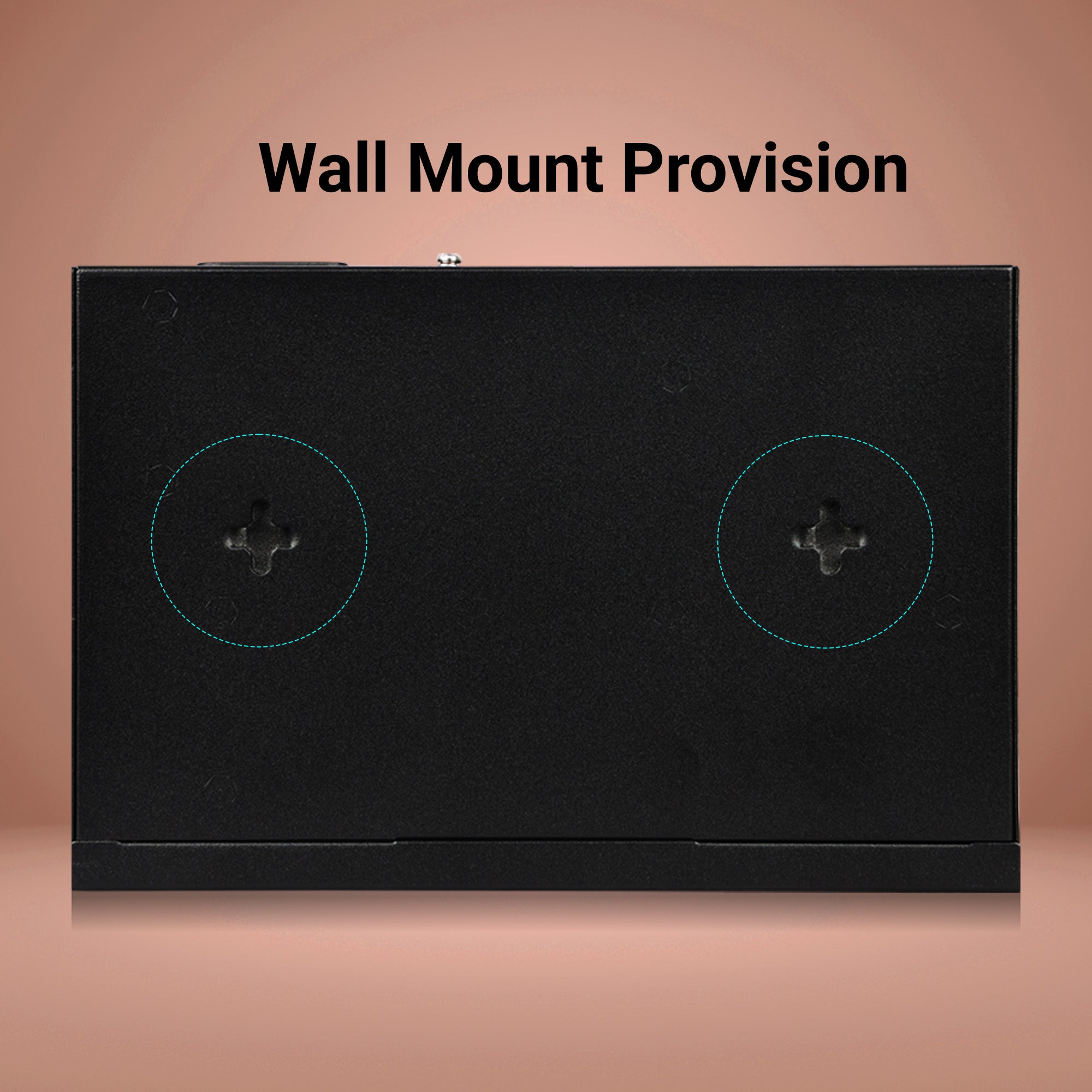

8 Self Adaptive Gigabit PoE Ports | Dual Gigabit Uplink Ports | 100m Transmission (Max.) | 150W Output (Max.) | Upto 30W Per Port | High Data Rate | Wide Compatibility | Flexible Mounting | Short Circuit Protection | Voltage Protection | Anti Interference Capability | Lightning Protection | SFP port | Wall Mount Provision
Specifications

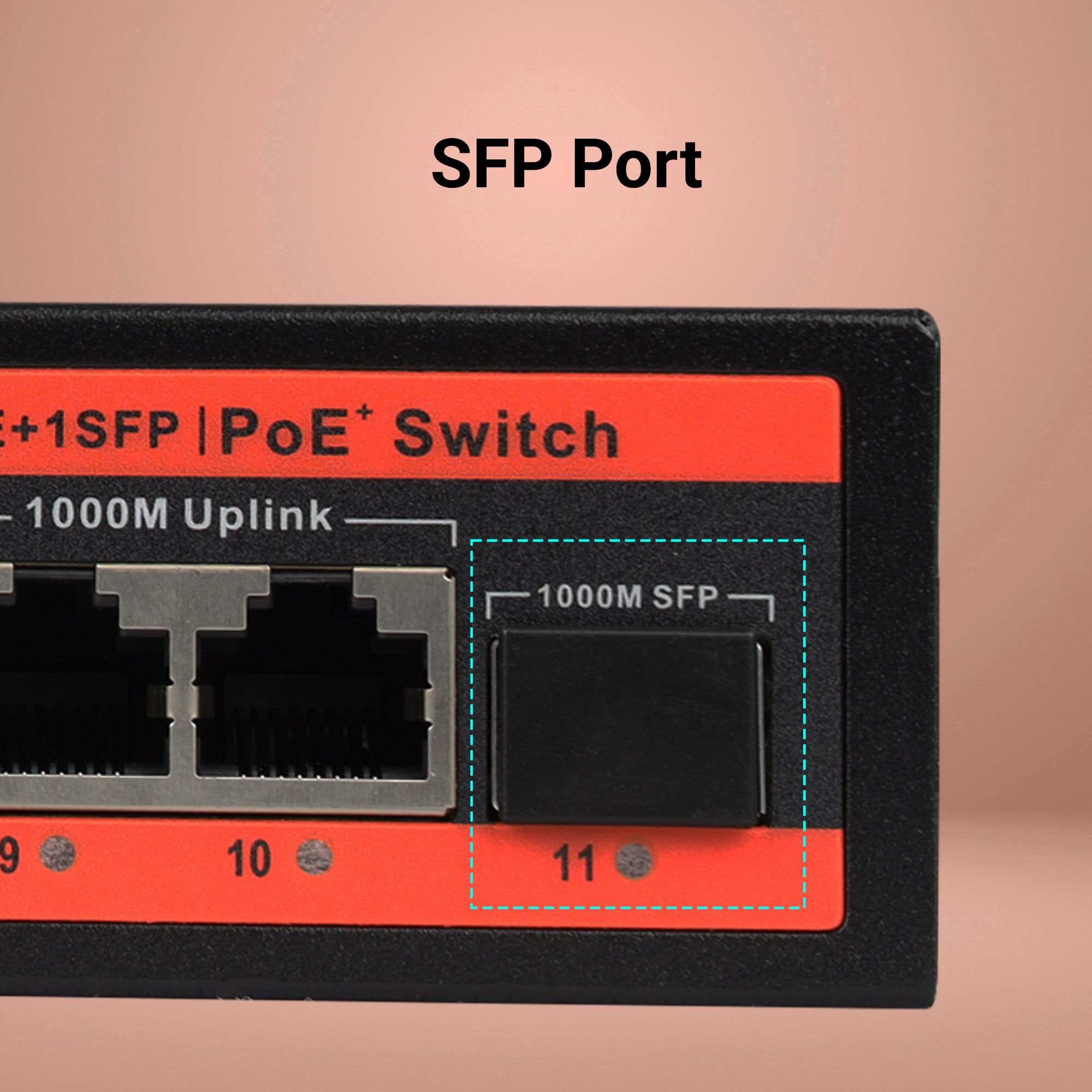

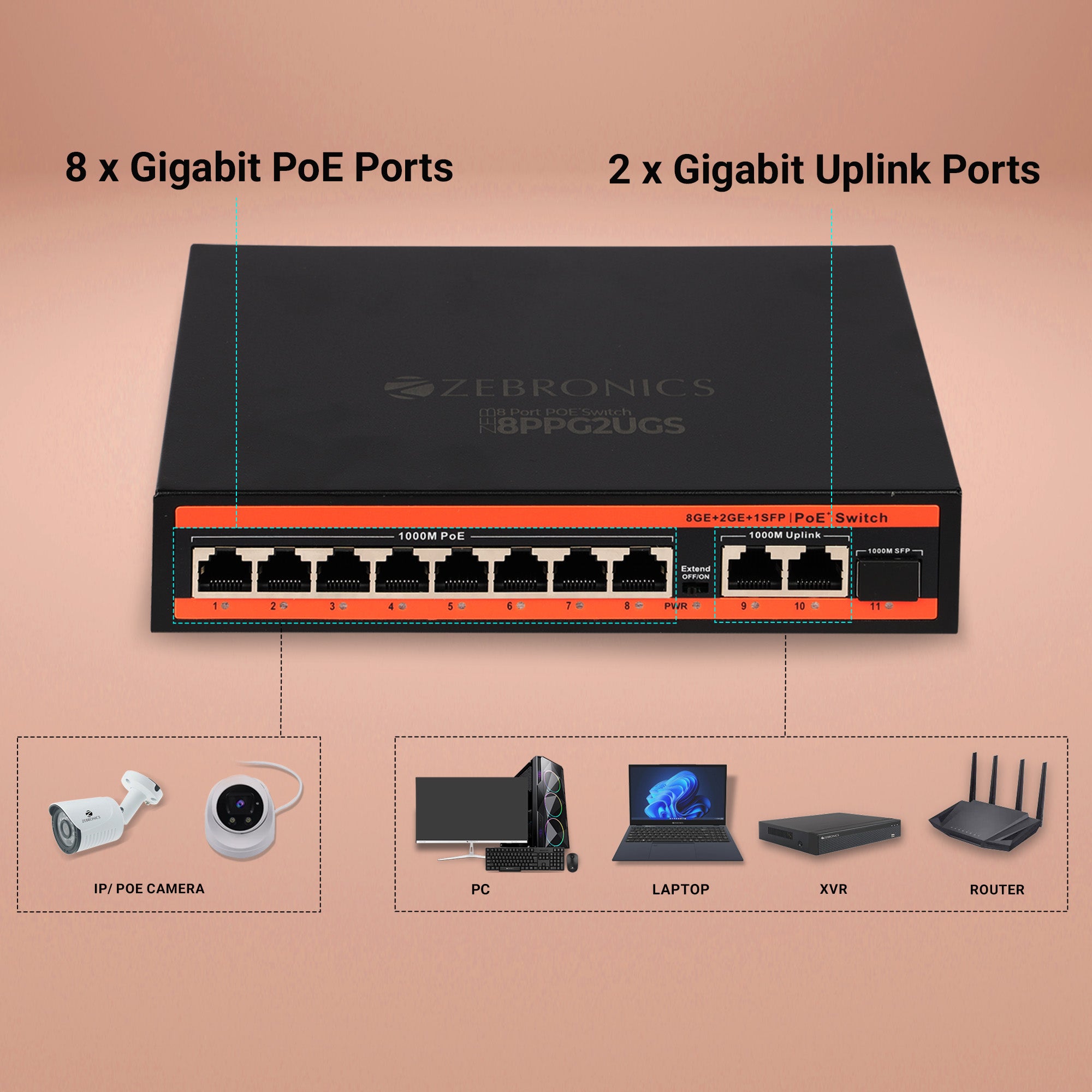

| Connector Type | 8 Ports 1000M PoE + 2 Ports 1000M Ethernet Uplink + 1SFP port | |
| Network Protocols | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab | |
| PoE Parameters | PoE Standard: IEEE802.3af (15.4W) & IEEE802.3at (30W) PoE Compatibility: IEEE802.3af/at Self AdaptivePower Pin Assignment : MODE A [1/2(+), 3/6(-)] | |
| Network Media | 10BASE-T: <250 meters100BASE-TX: <100 meters1000BASE-T: <100 Meters | |

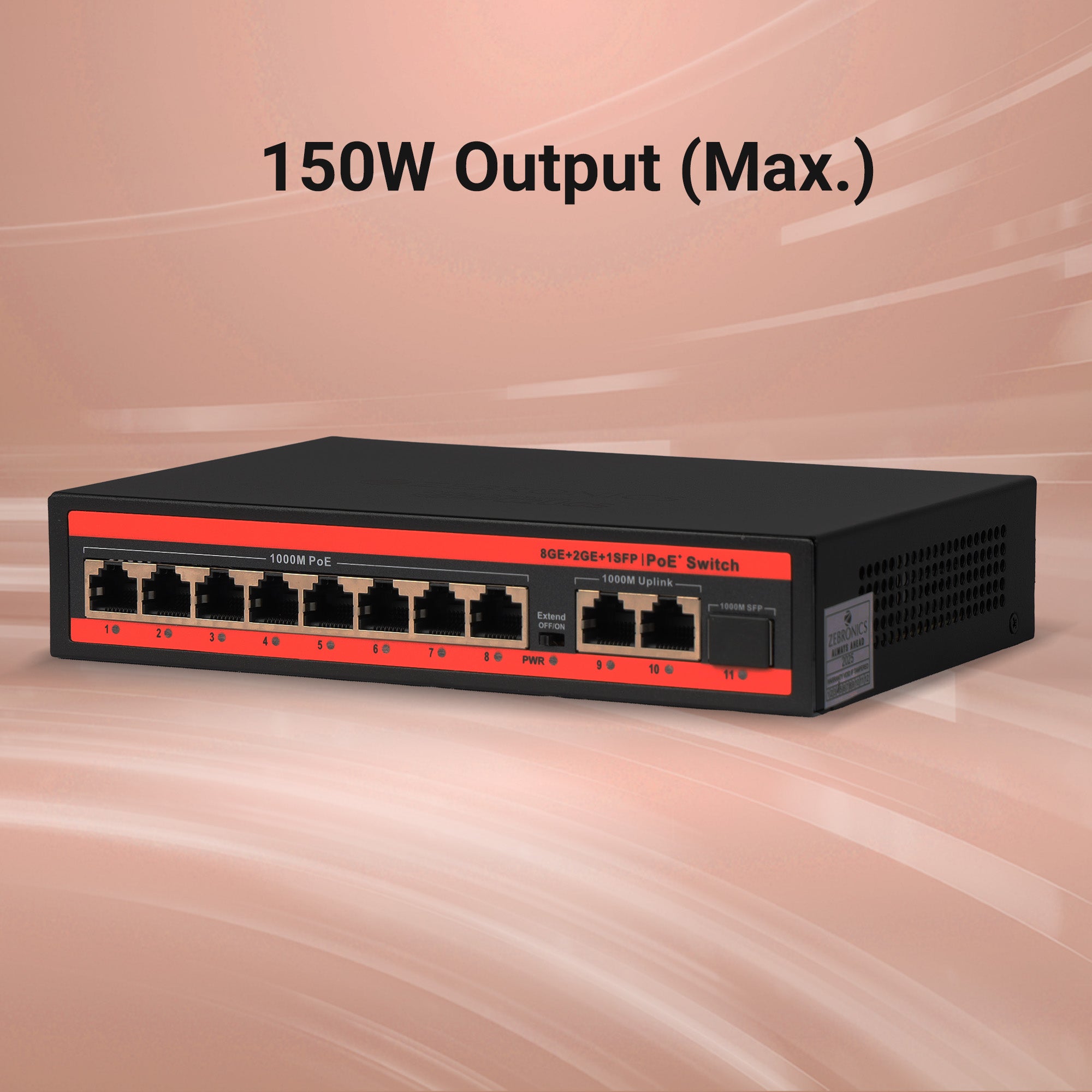

| Power Supply | Input: AC110-240V, 50/60Hz Output: 30W Per Port Power Budget: 150W | |
| Performance Specification |
Bandwidth: 22GbpsMAC: 2KPacket Buffer Memory: 1 Mbits10M Packet Forwarding Rate: 14880pps/port100M Packet Forwarding Rate: 148800pps/port1000M Packet Forwarding Rate: 1488000pps/port |
|
| LED Indicator | Power (Red): Lit - Powered, Unlit - No Power Ethernet : Flash - Data Transmit, Unlit - Disconnect | |
| Working Environment |
Operating Temperature: 25°C ~ 55°CStorage Temperature: 20°C ~ 70°COperating Humidity: Max 25 ~ 90%, Non-CondensingStorage Humidity: Max 20 ~ 95%, Non-Condensing |
|
| Physical Parameter |
Product Dimension (W x D x H) : 19 x 12.5 x 4 cmPackage Dimension (W x D x H) : 21x 19.9 x 4.8 cm |
|
| Net. Weight | 610 g | |
| Transmission Distance | Data Transmission Distance: 250 (Max.)PoE distance upto 100 meters via Cat.6 | |
| Port Surge Protection | 4KV | |
| Forwarding Mode | Store and forward | |
| Country of Origin | India | |
| Package Contents | ||
| Ethernet Switch | 1U | |
| Power Cord | 1U | |
| QR Code Guide | 1U |
