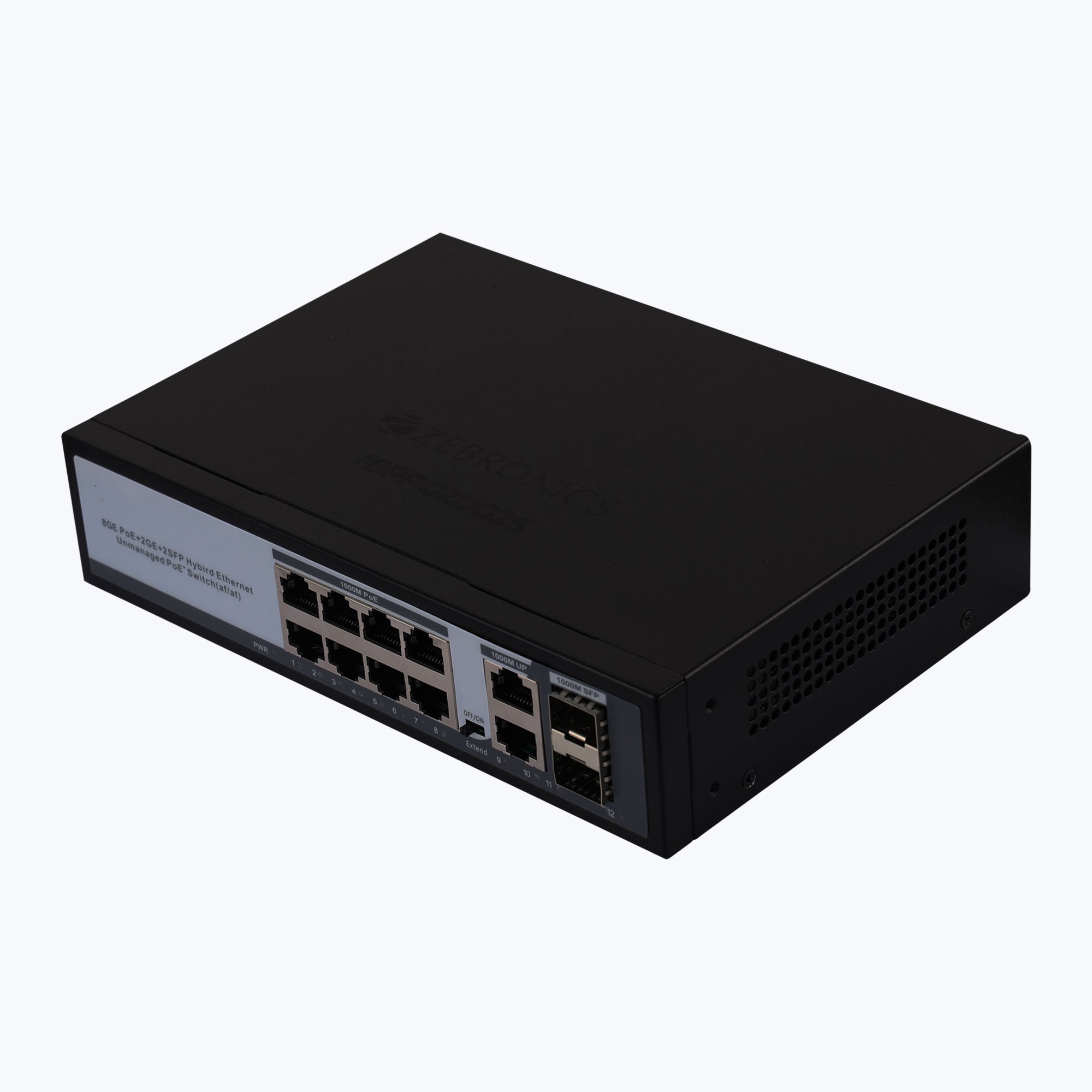

Zeb 8PPG2UG2S - 8 Port POE Switch
₹
10,499
Product Description
8 Self Adaptive Gigabit PoE Ports | Dual Gigabit Uplink Ports | 100m Transmission (Max.) | 150W Output (Max.) | Upto 30W Per Port | High Data Rate | Wide Compatibility | Flexible Mounting | Short Circuit Protection | Voltage Protection | Anti Interference Capability | Lightning Protection | Dual SFP ports
Specifications
| Connector Type | 8 Ports 1000M PoE + 2 Ports 1000M Ethernet Uplink + 2SFP slot | |
| Network Protocols | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab | |
| PoE Parameters | PoE Standard: IEEE802.3af (15.4W) & IEEE802.3at (30W)PoE Compatibility: IEEE802.3af/at Self AdaptivePower Pin Assignment : MODE A [1/2(+), 3/6(-)] | |
| PoE Standard | IEEE802.3af (15.4W) & IEEE802.3at (30W) | |
| PoE Compatibility | IEEE802.3af/at Self Adaptive | |
| Power Pin Assignment | MODE A [1/2(+), 3/6(-)] | |
| Network Media | 10BASE-T: <100 meters100BASE-TX: <100 meters1000BASE-T: <100 Meters | |
| Power Supply | Input: AC110-240V, 50/60Hz Output: 30W Per Port Power Budget: 150W | |
| Performance Specification | ||
| Bandwidth | 20Gbps | |
| MAC | 2K | |
| Packet Buffer Memory | 1 Mbits | |
| 10M Packet Forwarding Rate | 14880pps/port | |
| 100M Packet Forwarding Rate | 148800pps/port | |
| 1000M Packet Forwarding Rate | 148800pps/port | |
| LED Indicator | ||
| Power (Red) | Lit - Powered, Unlit - No Power | |
| Ethernet | Flash - Data Transmit, Unlit - Disconnect | |
| Working Environment | ||
| Operating Temperature: | 25°C ~ 50°C | |
| Storage Temperature: | 20°C ~ 70°C | |
| Operating Humidity | Max 25 ~ 90%, Non-Condensing | |
| Storage Humidity | Max 20 ~ 95%, Non-Condensing | |
| Physical Parameter | ||
| Product Dimension (W x D x H) | 20.2 x 14 x 4.5 cm | |
| Package Dimension: (W x D x H) | 23.5 x 20 x 7 cm | |
| Net. Weight | 816 g | |
| Transmission Distance | ||
| Data Transmission Distance | 100 (Max.) | |
| PoE distance | upto 100 meters with 10m via Cat.6 | |
| Switching Capacity | 20Gbps | |
| Port Surge Protection | 4KV | |
| Forwarding Mode | Store and forward | |
| Country of Origin | India | |
| Package Contents | ||
| Ethernet Switch | 1U | |

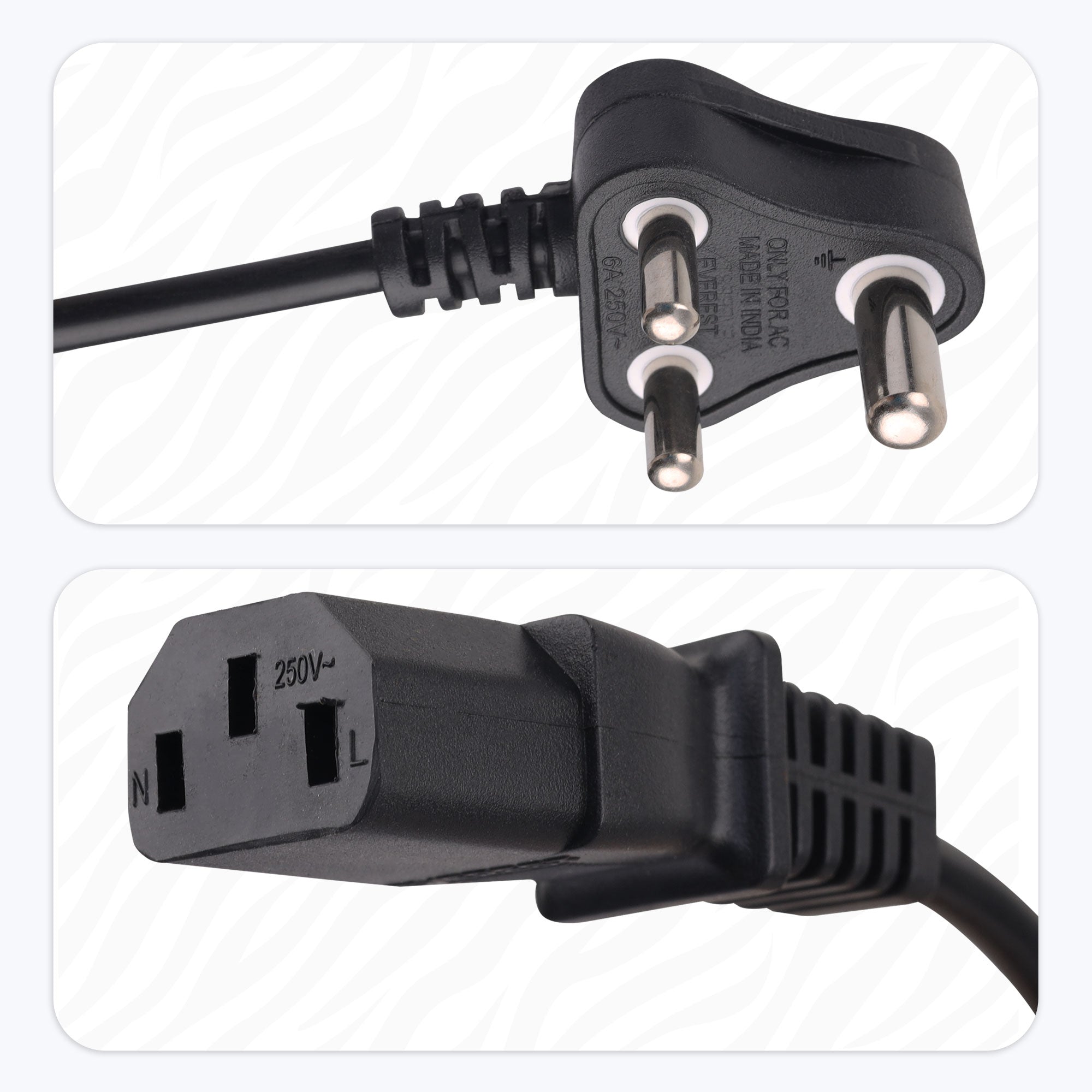

| Power Cord | 1U | |
| QR Code Guide | 1U |
