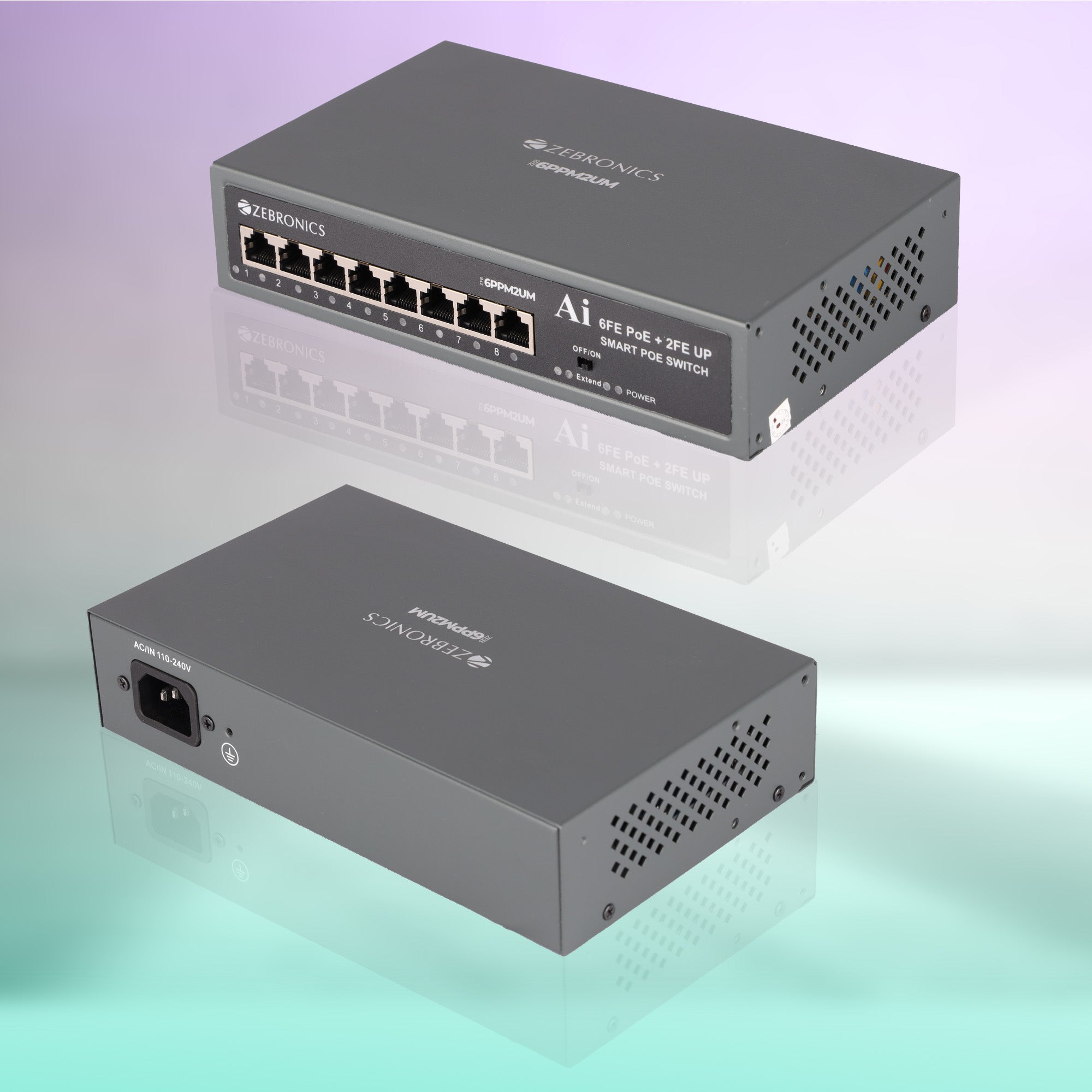

Zeb 6PPM2UM
₹
4,999
Product Description

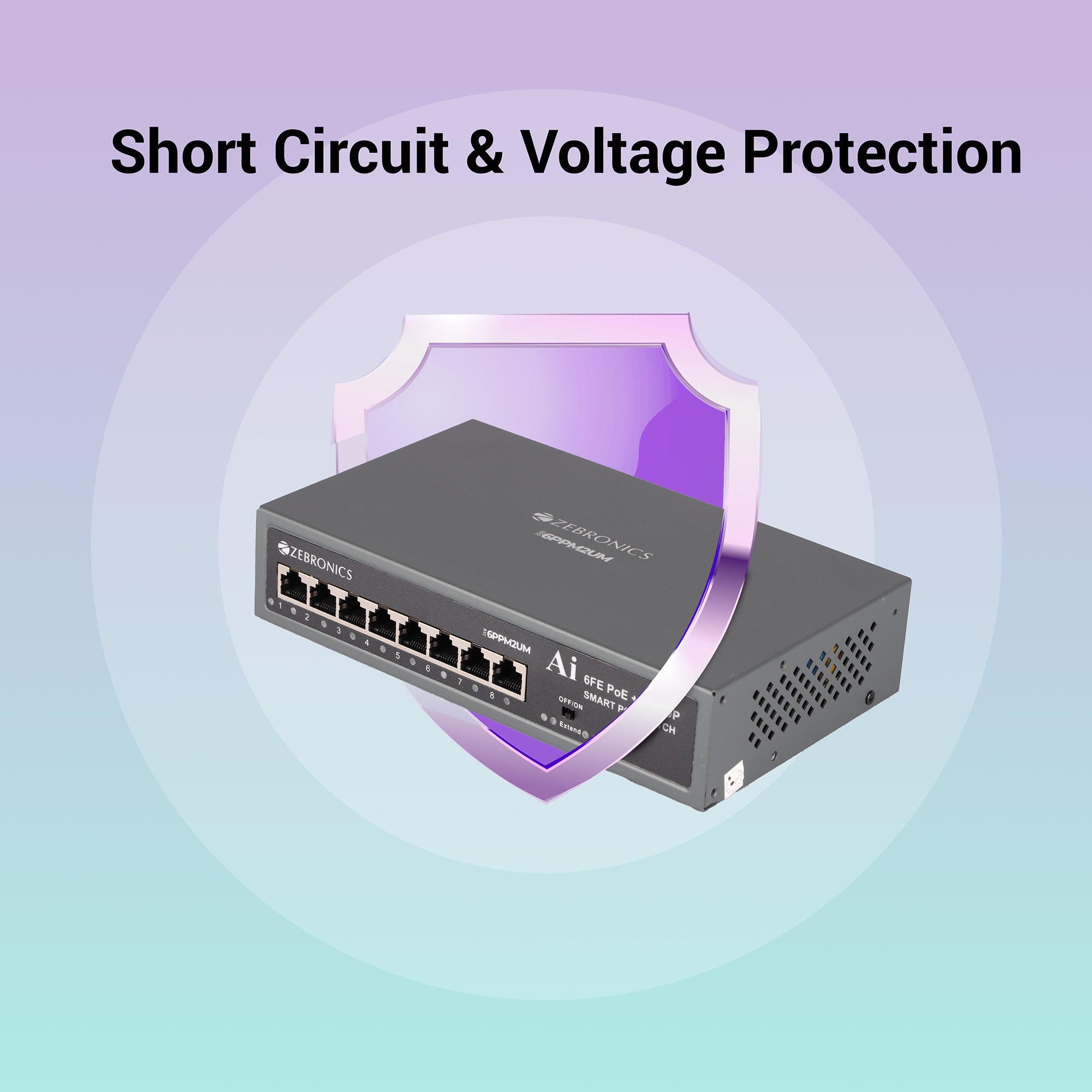

6 Self Adaptive PoE Ports | Dual 100M Uplink Ports | 120W Output (Max.) | Upto 30W Per Port | Full Duplex | High Data Rate | Wide Compatibility | Dynamic Power Control | Short Circuit Protection | Voltage Protection | Anti Interference Capability | Lightning Protection | With Extender Switch
Specifications

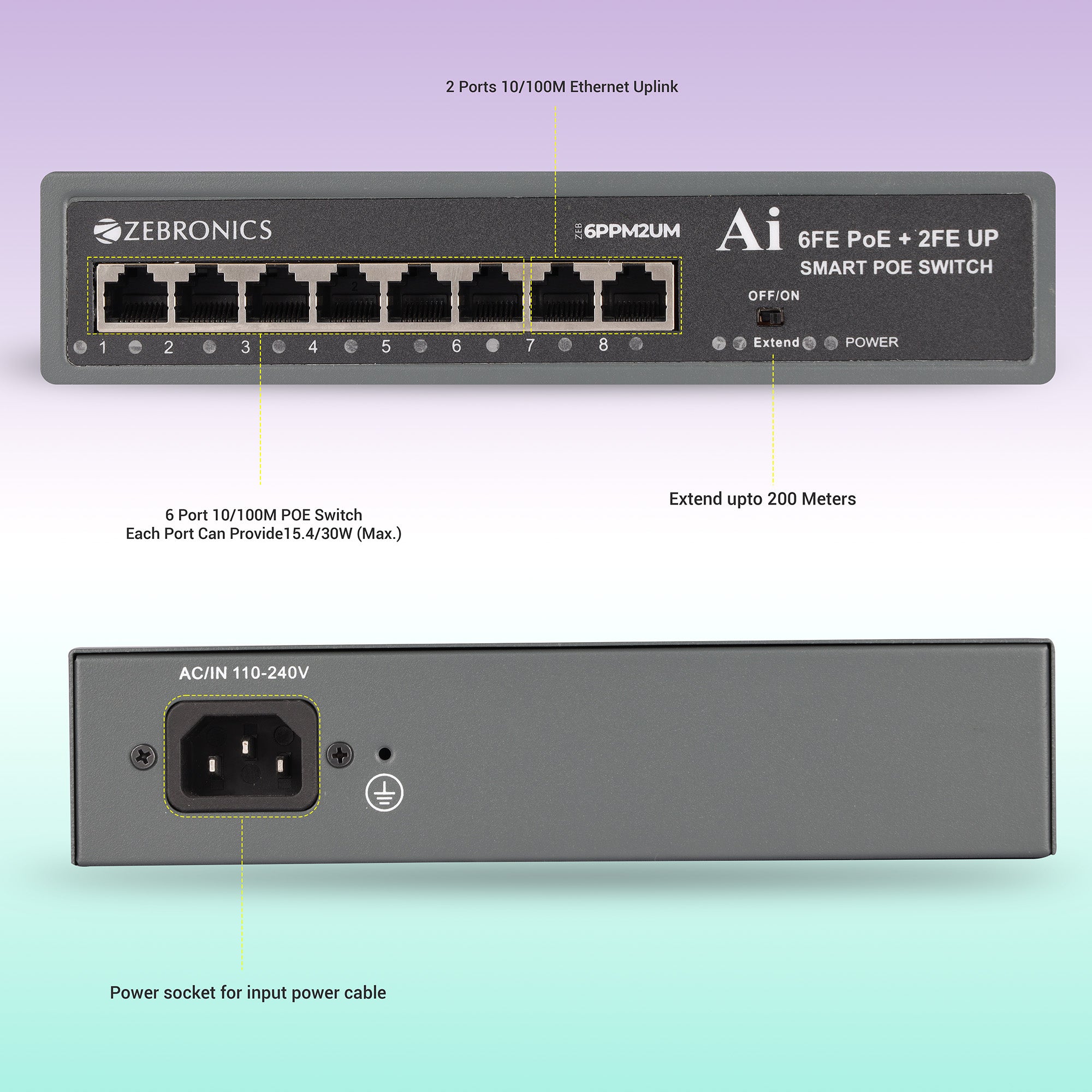

| Connector Type | 6 Ports 10/100M PoE + 2 Ports 10/100M Ethernet Uplink | |
| Network Protocols | IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at | |
| PoE Parameters | PoE Standard: IEEE802.3af (15.4W) & IEEE802.3at (30W) PoE Compatibility: IEEE802.3af/at Self Adaptive | |
| Network Media | 10BASE-T: <200 Meters100BASE-TX: <90 Meters | |
| Power Supply | Input: AC100-240V, 50/60Hz Output: 30W Per Port Power Budget: 120W | |
| Performance Specification | Bandwidth: 1.6 GbpsMAC: 1KPacket Buffer Memory: Internal Cache - 448 Kbits 10M Packet Forwarding Rate: 14880pps/port100M Packet Forwarding Rate: 148800pps/port | |
| LED Indicator | Power (Red): Lit - Powered, Off - No Power Ethernet : Flash - Data Transmit, Off - Disconnect | |
| Working Environment | Operating Temperature: -10°C ~ 55°CStorage Temperature: -40°C ~ 85°COperating Humidity: Max 10 ~ 90%, Non-Condensing Storage Humidity: Max 5 ~ 95%, Non-Condensing | |
| Physical Parameter | ||
| Product Dimension (W x D x H) | 20 x 11.8 x 4.5 cm | |
| Net. Weight | 700g | |
| Transmission Distance | Data Transmission Distance: 200m (Max.)PoE distance upto 200meters with 10M via Cat.6 | |
| Switching Capacity | 1.6 Gbps | |
| Port Surge Protection | 6KV | |
| Forwarding Mode | Store-&-Forward Switching | |
| Country of Origin | India | |
| Package Contents | ||
| Ethernet Switch | 1U | |

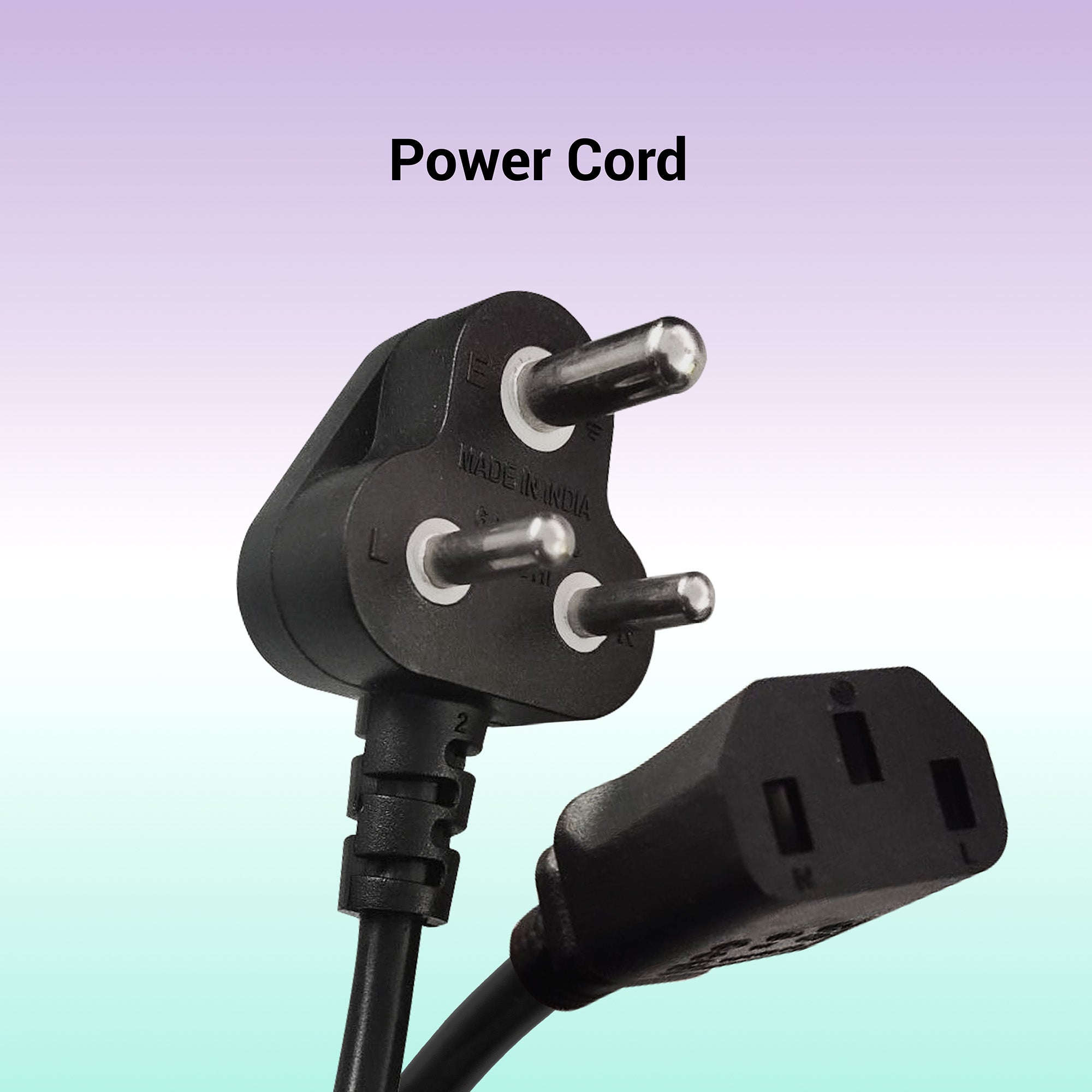

| Power Cord | 1U | |
| QR Code Guide | 1U |
