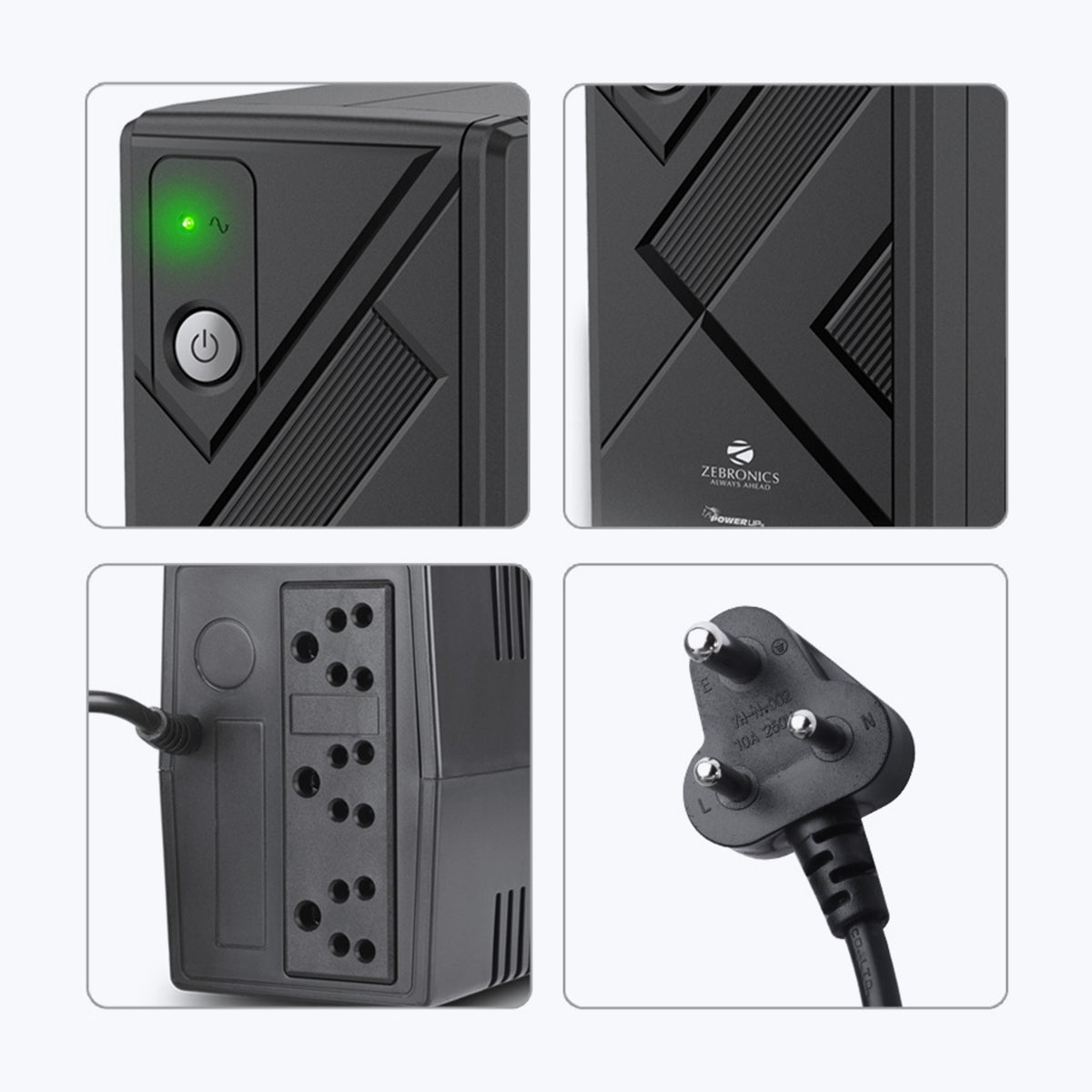

Zeb U775
₹
3,399
Product Description
Line interactive UPS | Auto restart while AC is recovering | Double boost | Automatic voltage regulation (AVR) | Wide input range | Microcontroller based | Generator compatible
Specifications
| Capacity | |||
| (VA/W) | 650VA/360W | ||
| Input | |||
| Nominal voltage | 220-240 VAC | ||
| Voltage range | 140-300 VAC ± 7 Vac | ||
| Frequency | 40-70 Hz ± 1 Hz | ||
| Plug type | 3 Pin plug | ||
|
Output |
|||
| Voltage range (AC mode) | 195-262Vac ±7Vac | ||
| Voltage range (Batt. mode | 230VAC ± 10 % | ||
| Frequency range (Batt. mode) | 50/60Hz ±1% | ||
| Transfer time | 4ms TYP | ||
| Waveform | Simulated sine wave | ||
| No. of output sockets | 3 | ||
| Protections | Overload, Short circuit, Over discharge & Over charge | ||
|
Battery |
|||
| Battery type | 12V 7Ah x 1 no | ||
| Charging current | 12V 7Ah x 1 no | ||
| Recharge time | 4 hours to charge 90% | ||
|
Indicators |
|||
| No. of LEDs | 1 LED | ||
| AC mode | Green lighting | ||
| Battery mode | Green flashing | ||
|
Alarm |
|||
| Battery mode | Beeping every 30 seconds | ||
| Low battery | Beeping every 2 seconds | ||
| Overload | Beeping every 0.5 seconds | ||
| Fault | Continuous beeping | ||
|
Physical details |
|||
| Product dimension (W x D x H) | 87 x 277 x 165 mm | ||
| Net. weight | 4kg | ||
| Package dimension (WxDxH | 319 x 126 x 232 mm | ||
| Environmental factors | |||
| Operational temperature | 0-40⁰C | ||
| Noise level | < 40dB | ||
| Country of Origin | China | ||
