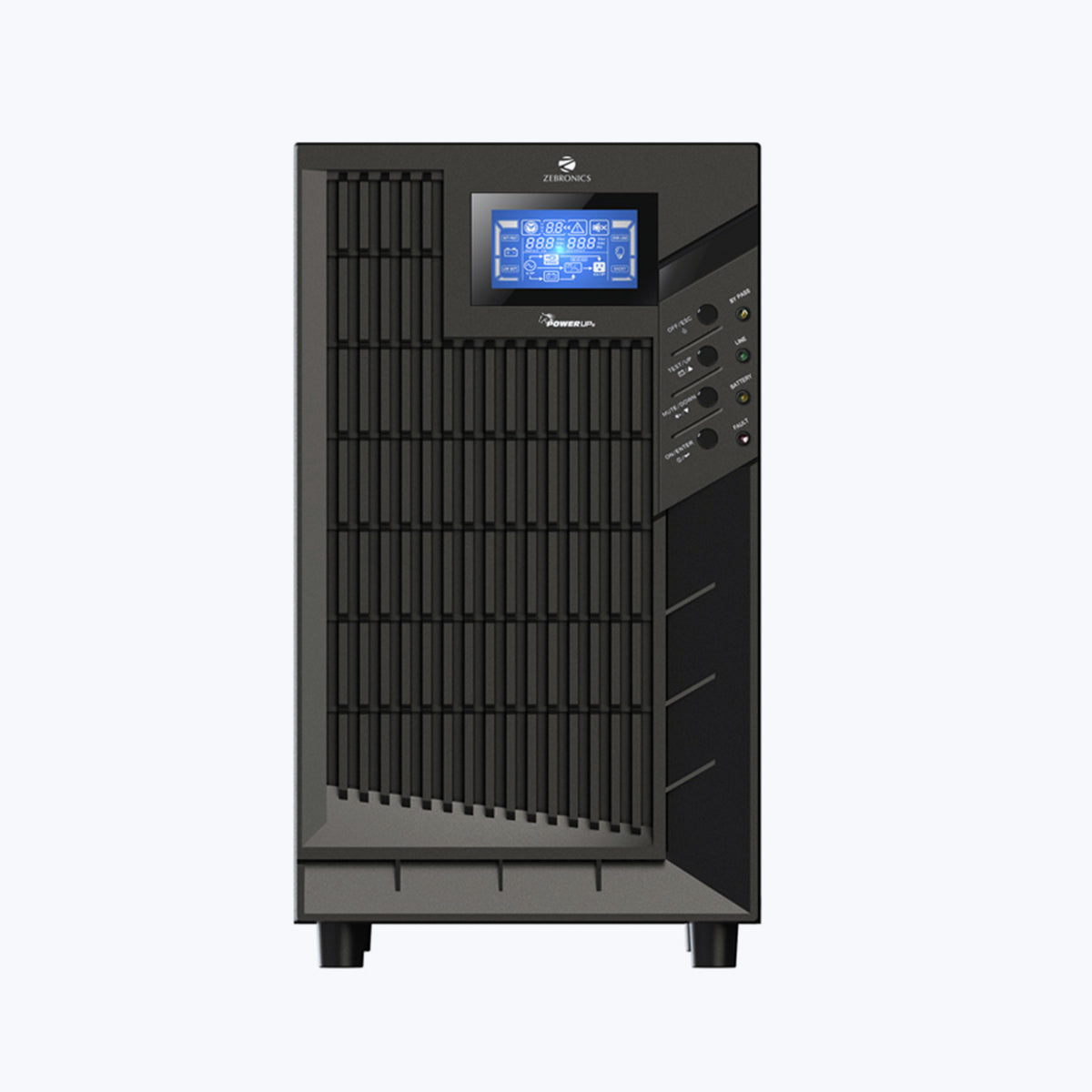

Zeb-OU10KE16
₹
82,000
Product Description
True double-conversion | Microprocessor control optimizes reliability | Wide input voltage (110 V —300 V) | Converter mode available | ECO mode for energy saving (Only available for 1-3KVA) | Generator compatible | Smart SNMP works well with either USB or RS-232 together | Comprehensive display allows easy monitoring and access of UPS status | Input power factor correction | Adjustable battery number | Emergency power off (EPO) function | Country of Origin : China
Specifications
| MODEL | ZEB-OU10KE16 | |
| Phase | 1-phase in / 1-phase out | |
| Capacity | 10000 VA 8000W | |
| INPUT | ||
| Nominal Voltage | 208/220/230/240VAC | |
| Voltage Range | 110-300 VAC (Based on load at 50%) 176-300 VAC (Based on load at 100%) | |
| Frequency Range | 46~54 Hz or 56~64 Hz | |
| Power Factor | ≥0.99 @ 100% Load | |
| OUTPUT | ||
| Output Voltage | 208/220/230/240VAC | |
| AC Voltage Regulation (Batt. Mode) | ± 1% | |
| Frequency Range (Synchronized Range) | 46~54Hz | |
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz | |
| Current Crest Ratio | 3:1 (max.) | |
| Harmonic Distortion | ≦ 3 % THD (Linear Load) | |
| ≦ 5 % THD (Non-linear Load | ||
| Transfer Time | AC Mode to Batt. Mode : Zero | |
| Inverter to Bypass : Zero | ||
| Waveform (Batt. Mode) | Pure Sine wave | |
| EFFICIENCY | ||
| AC Mode | 93.00% | |
| BATT Mode | 91.00% | |
| BATTERY | ||
| Numbers | 16 ~ 20 (Adjustable)* | |
| Typical Recharge Time | 9hrs recover to 90% capacity | |
| Battery Type | SMF/VRLA | |
| Charging Current (max.) | 1A/2A/4A/6A (Adjustable, 6A is only available for 16pcs batteries | |
| Charging Voltage | 13.65 x N (N-Number of battery | |
| INDICATORS | ||
| LCD Display | UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions | |
| ALARM | ||
| Battery Mode | Sounding every 4 seconds | |
| Low Battery | Sounding every second | |
| Overload | Sounding twice every second | |
| Fault | Continuously sounding | |
| PHYSICAL | ||
| Dimension,DxWxH (mm) | 442 x 190 x 318 | |
| Net Weight (kgs) | 16 | |
| ENVIRONMENT | ||
| Operation Humidity | 0-95% RH @ 0-40°C (non-condensing | |
| Noise Leve | Less than 58dB @ 1 Meter | |
| MANAGEMENT | ||
| Smart RS-232 / USB | Supports Windows 2 2000/2003/XP/Vista/2008, Windows2 7/8/10, Linux and MAC | |
| Optional SNMP | Power management from SNMP manager and web browser |
