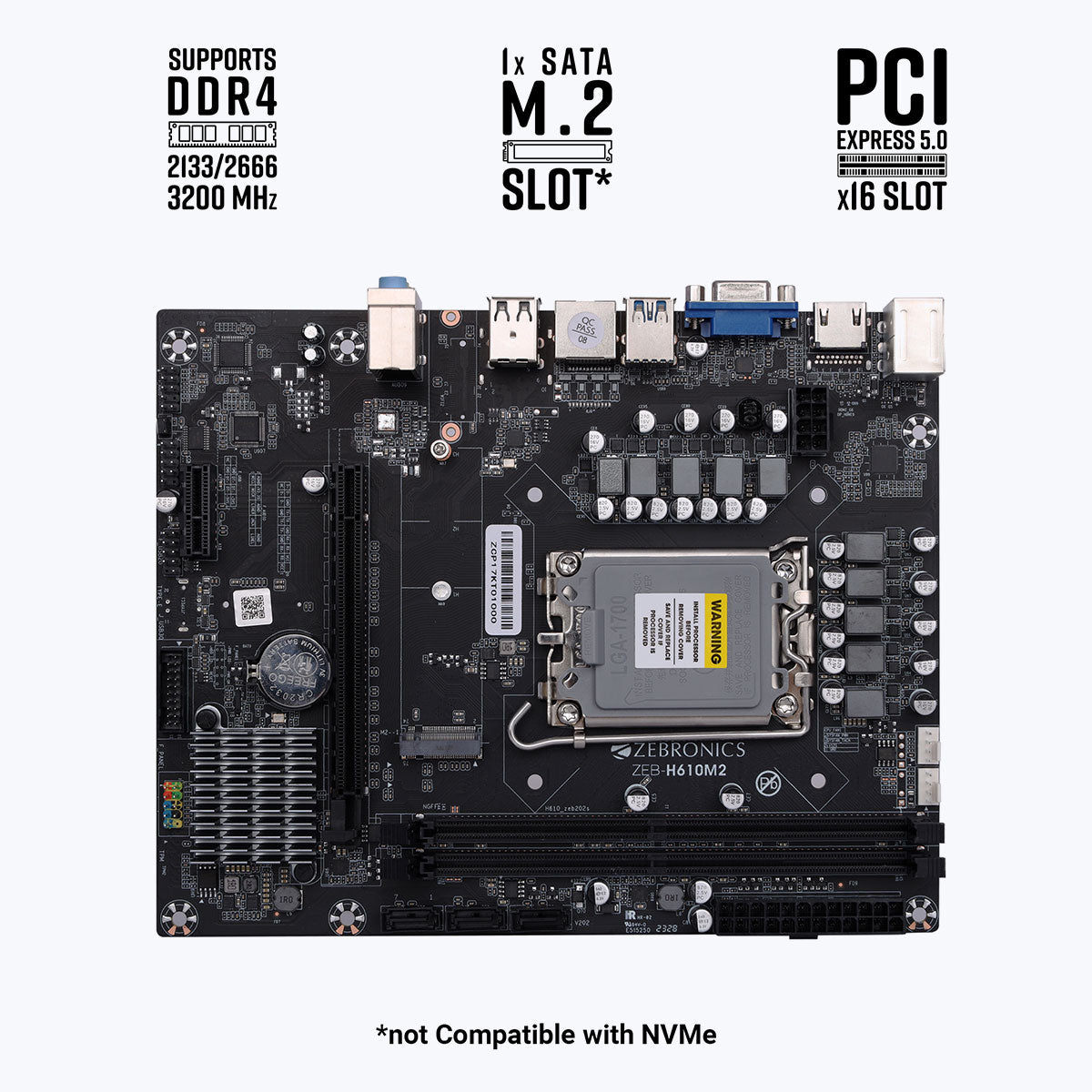

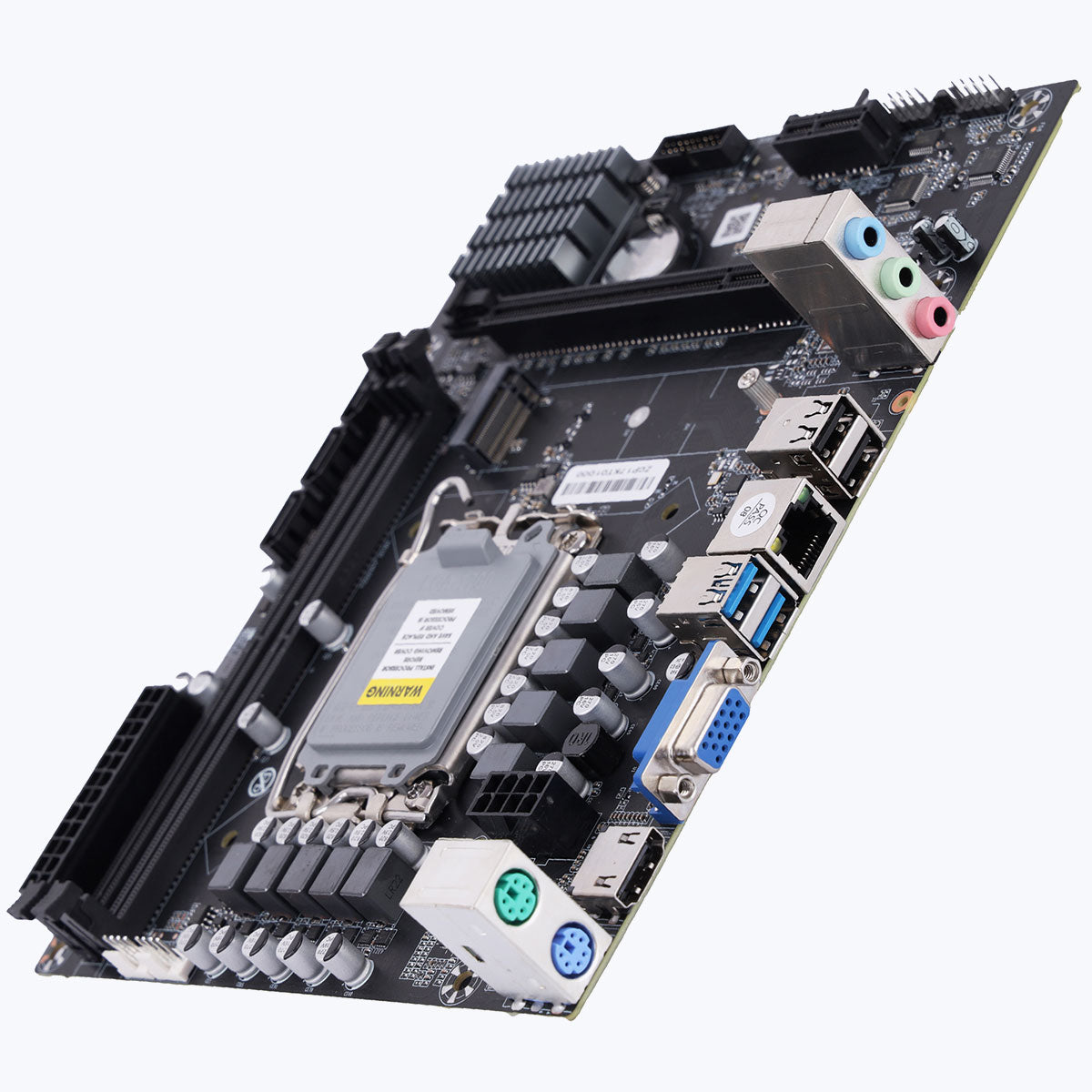

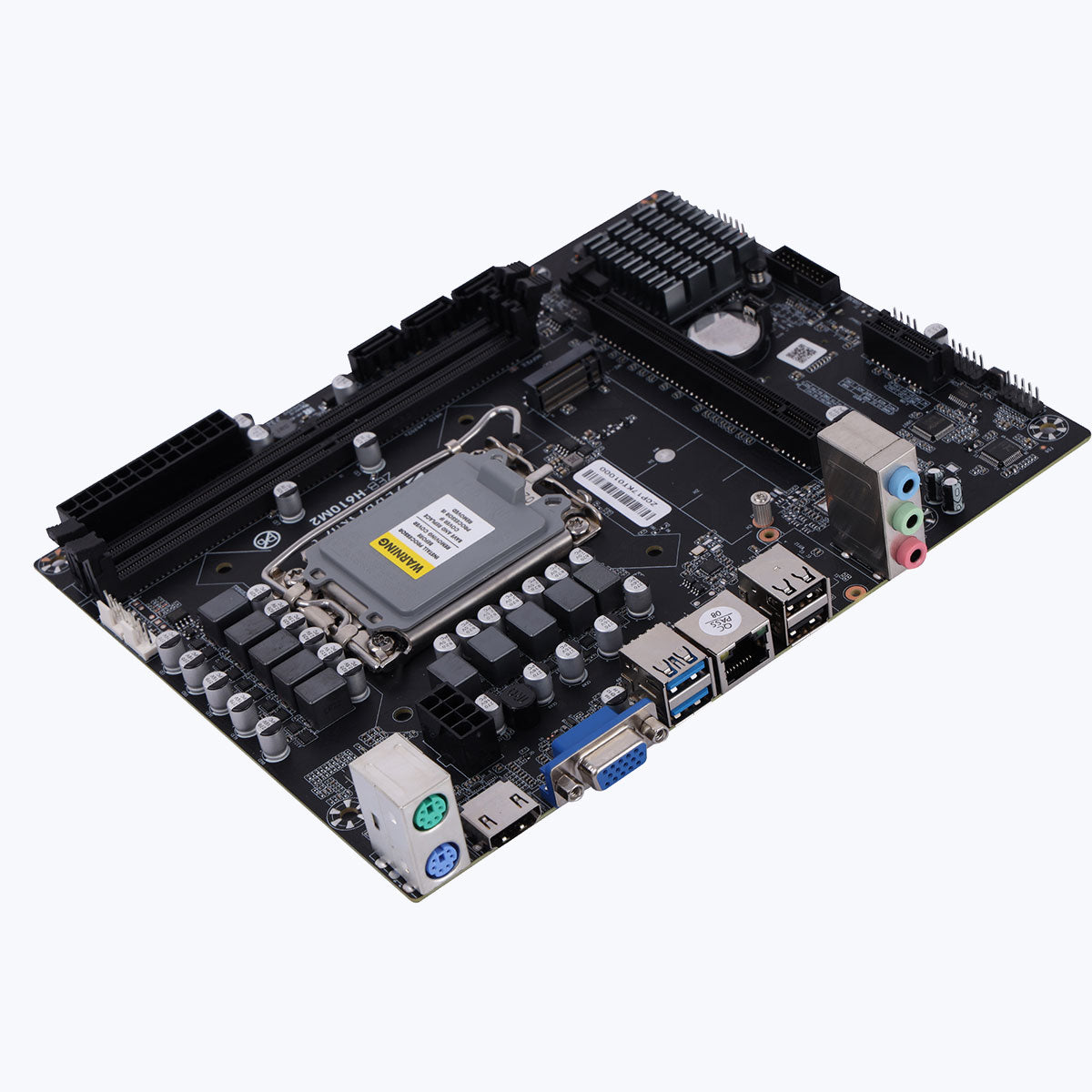

Zeb H610M2 - LGA 1700 Socket

₹ 14,999

Supported CPU	Intel Celeron / Pentium / i3 / i5 / i7 / i9 12th & 13th generation series processor in LGA 1700
Chipset	Intel H610 Chipset
Memory Supported	2 no's DDR4 Memory slotsMemory up to 64GB Supports DDR4 2133/2666/3200 MHz memory
BIOS	AMI BIOS

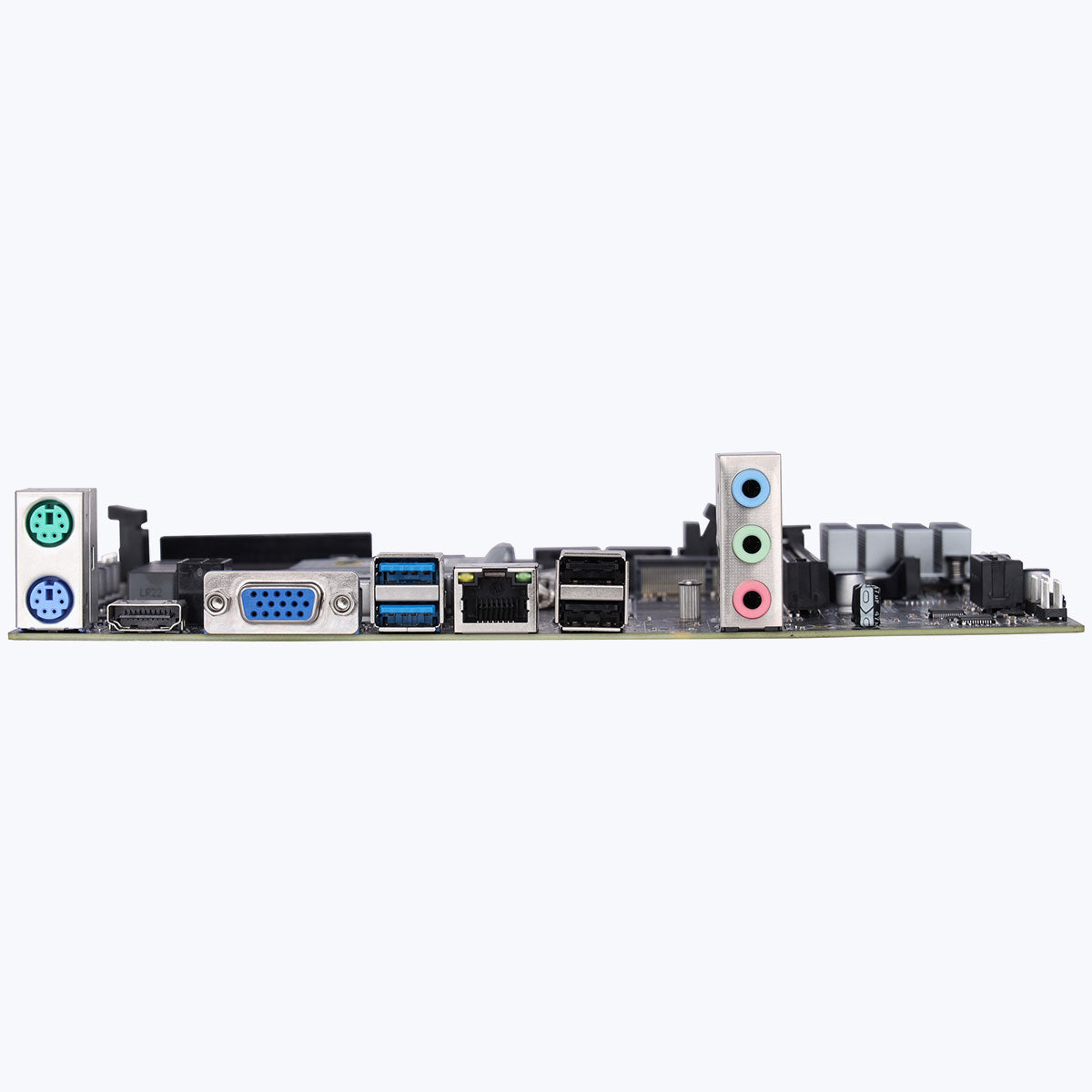

I/O Interface	1 x HDMI port, 1 x VGA Port, 2 x USB 2.0 Port, 2 x USB 3.0 Port,1 x RJ45 Port, 1 x 3-in-1 Audio - 5.1 audio, 1 x PS/2 keyboard port and 1 x PS/2 Mouse port

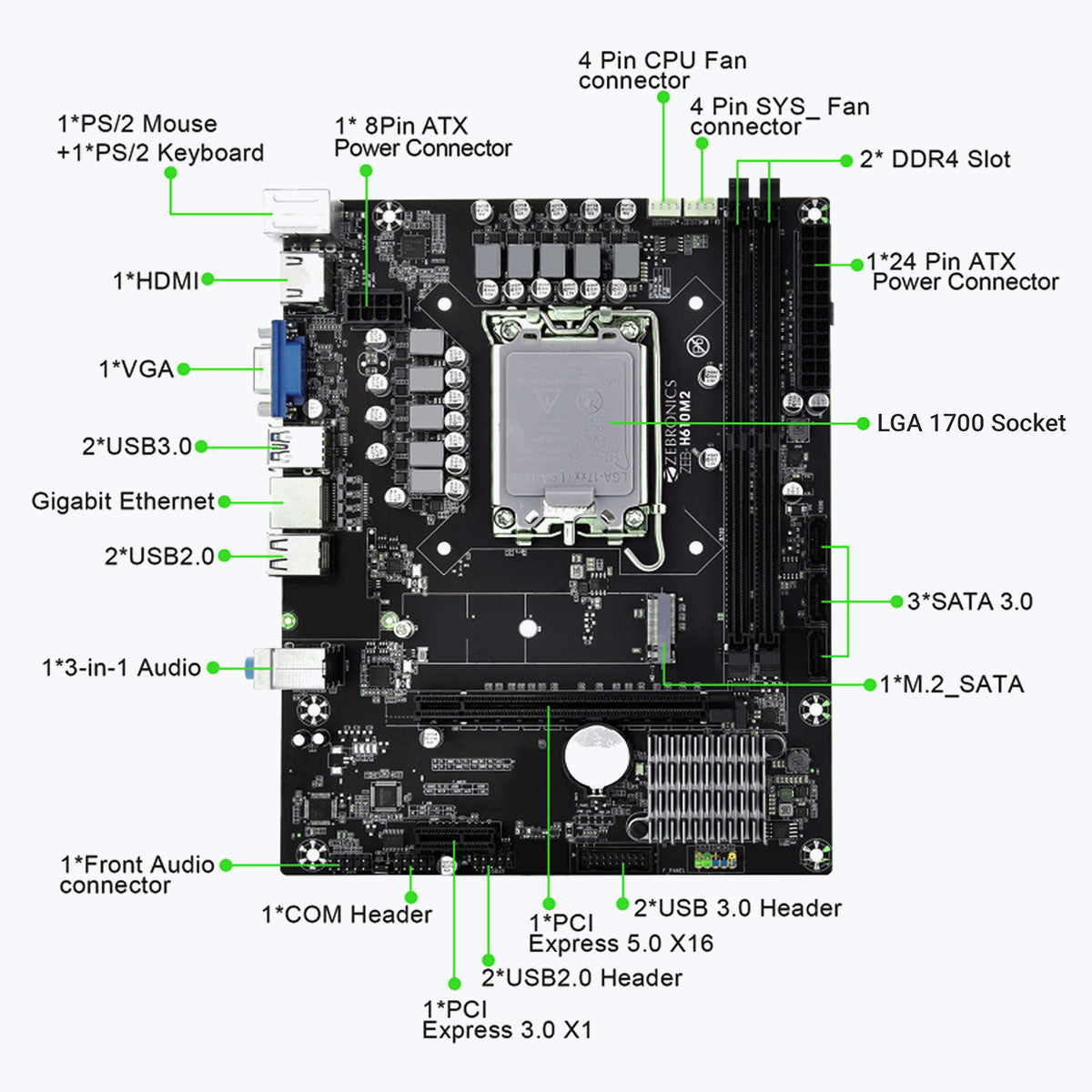

Onboard Interface	1x 24 pin ATX Power Connector, 1 x 8 Pin ATX 12V Power Connector1 x USB 3.0 header, 1 x USB 2.0 header,1 x Front Audio Connector3 x SATA 3.0, 1 x COM pin, 1 x Front Panel connector1 x 4 pins CPU FAN, 1 x 4 pins SYS FAN.
ntegrated Sound	With 5.1-Channel Audio
Integrated LAN	Supports RTL8111G 10/100/1000 Mbps Ethernet LAN
Expansion Slot	1 x PCI Express 5.0 x16 Slot, 1 x PCI Express 3.0 x1 Slot, 1 x SATA M.2 Slot*
Form Factor	Micro-ATX
	Country of Origin	People’s Republic of China

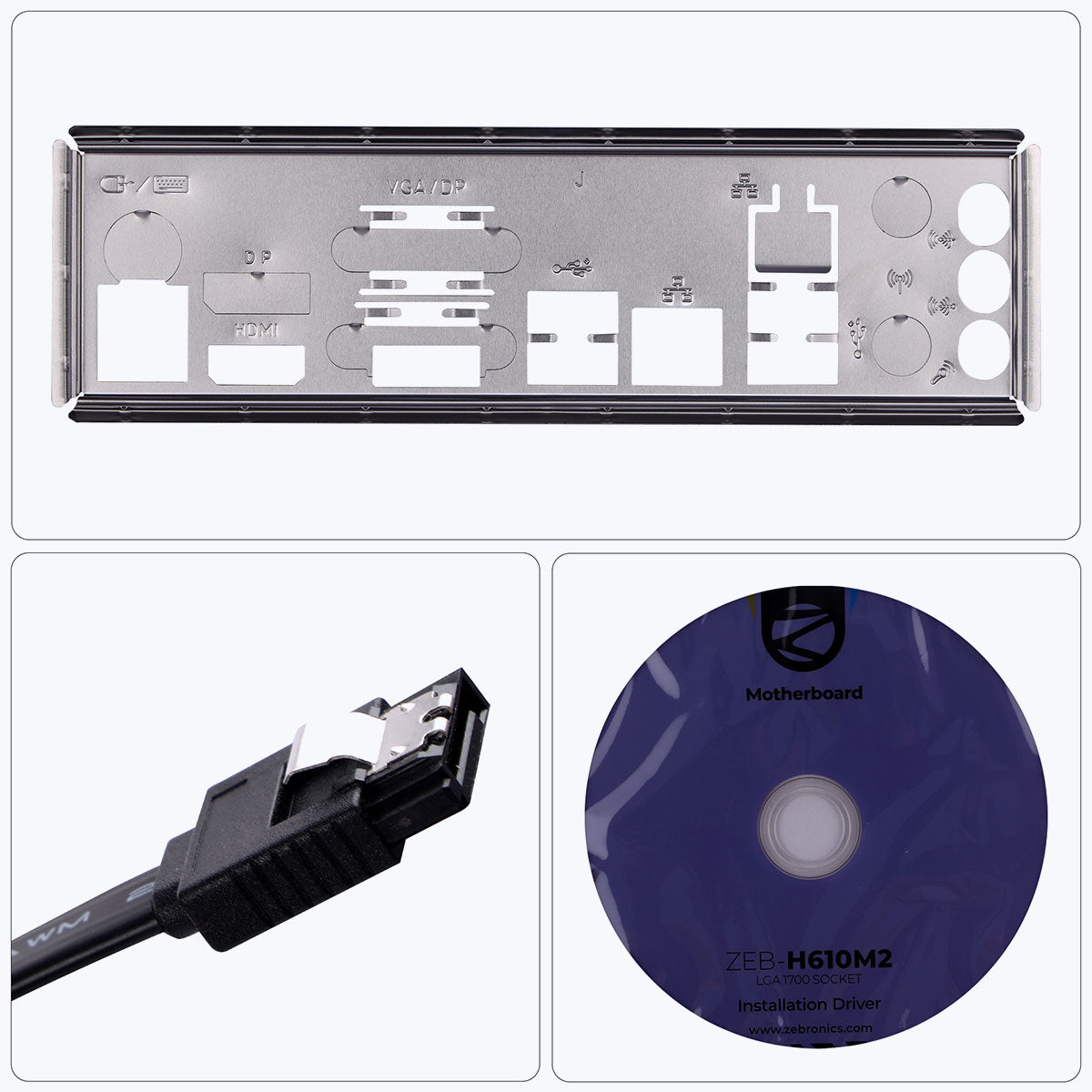

	Package contents
	ZEB-H610 Motherboard	1 U
	SATA Cable	1 U
	I/O Backplate	1 U
	Driver Disc	1 U
	User Manual	1 U

	*not compatible with NVMe
