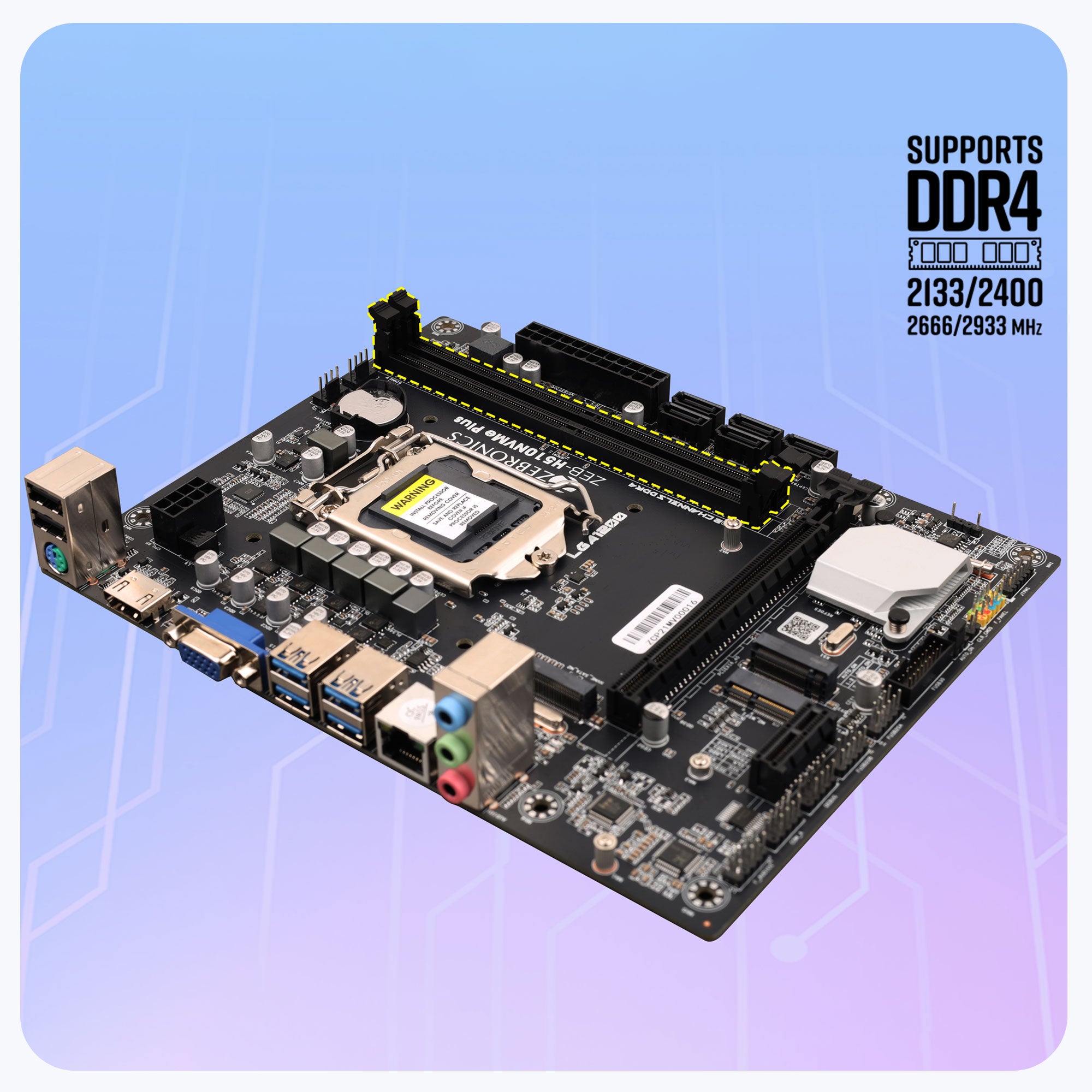

Zeb H510NVMe Plus - LGA 1200 Socket

	Supported CPU	Intel i3/i5/i7/Celeron/Pentium 10th & 11th generation series processor in LGA 1200
	Memory Supported	2 No.s DDR4 DIMM Memory Slots Memory up to 64GBSupports DDR4 2133/2400/2666/2933 MHz memory
	BIOS	AMI BIOS

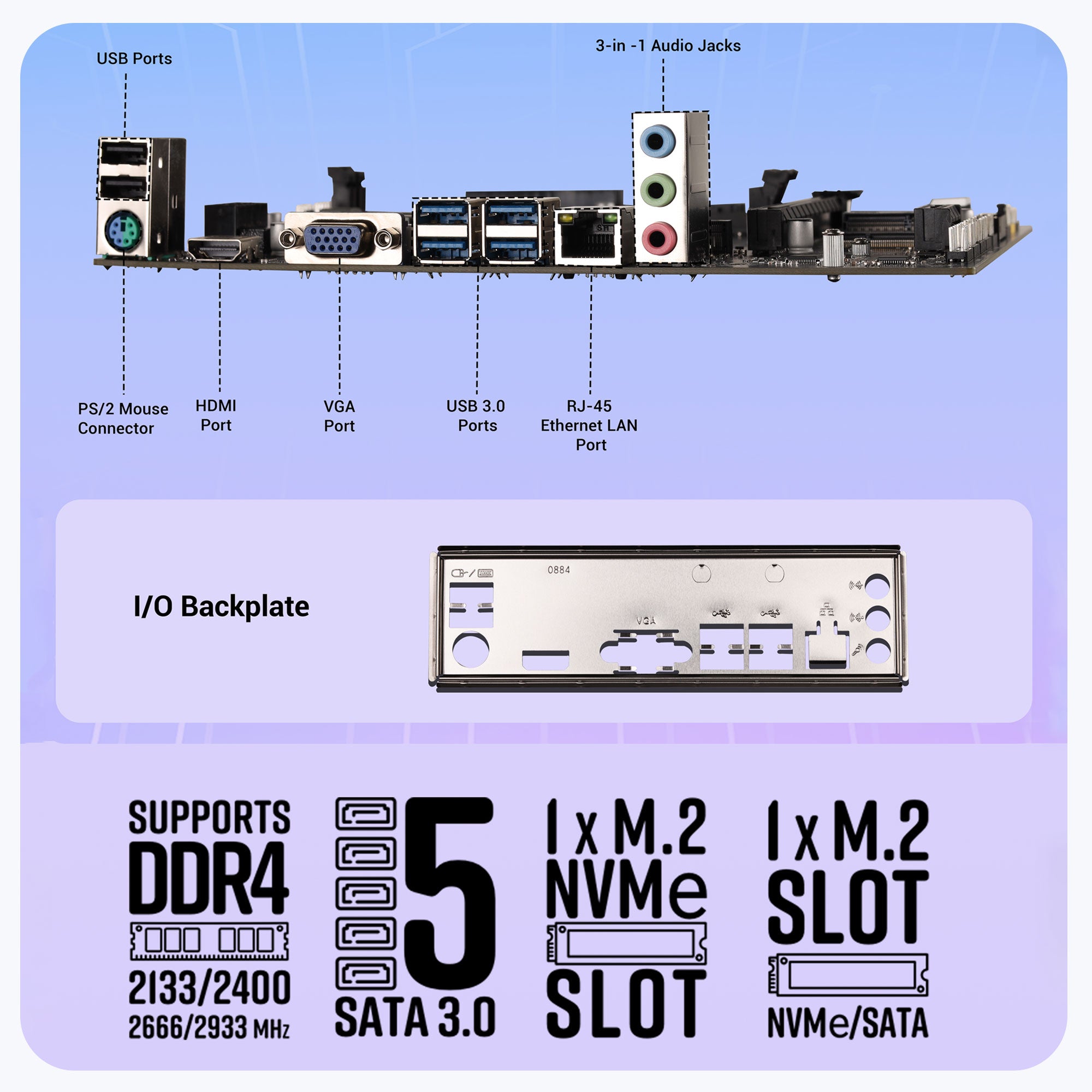

	I/O Interface	1 x HDMI Port, 1 x VGA Port, 4 x USB 3.0 Port, 2 x USB 2.0 Port, 1 x RJ45 LAN Port, 1 x 3-in-1 Audio Jacks, 1 x PS/2 2-in-1 Port
	Onboard Interface	1 x 4 Pin CPU Fan Connector, 1 x 4 Pin SYS Fan Connector, 1 x Front Audio Connector, 1 x USB 3.0 Connector, 2 x USB 2.0 Connector, 1 x COM Connector, 1 x Front Control Panel Connector, 1 x Debug Card Connector, 1 x Speaker Connector, 1 x CMOS Connector，1 x 24pin ATX Connector, 1 x 8 Pin 12V Connector，1 x TPM Connector, 5 x SATA 3.0
Integrated LAN	Supports RTL8111H 10/100/1000 Mbps Ethernet LAN

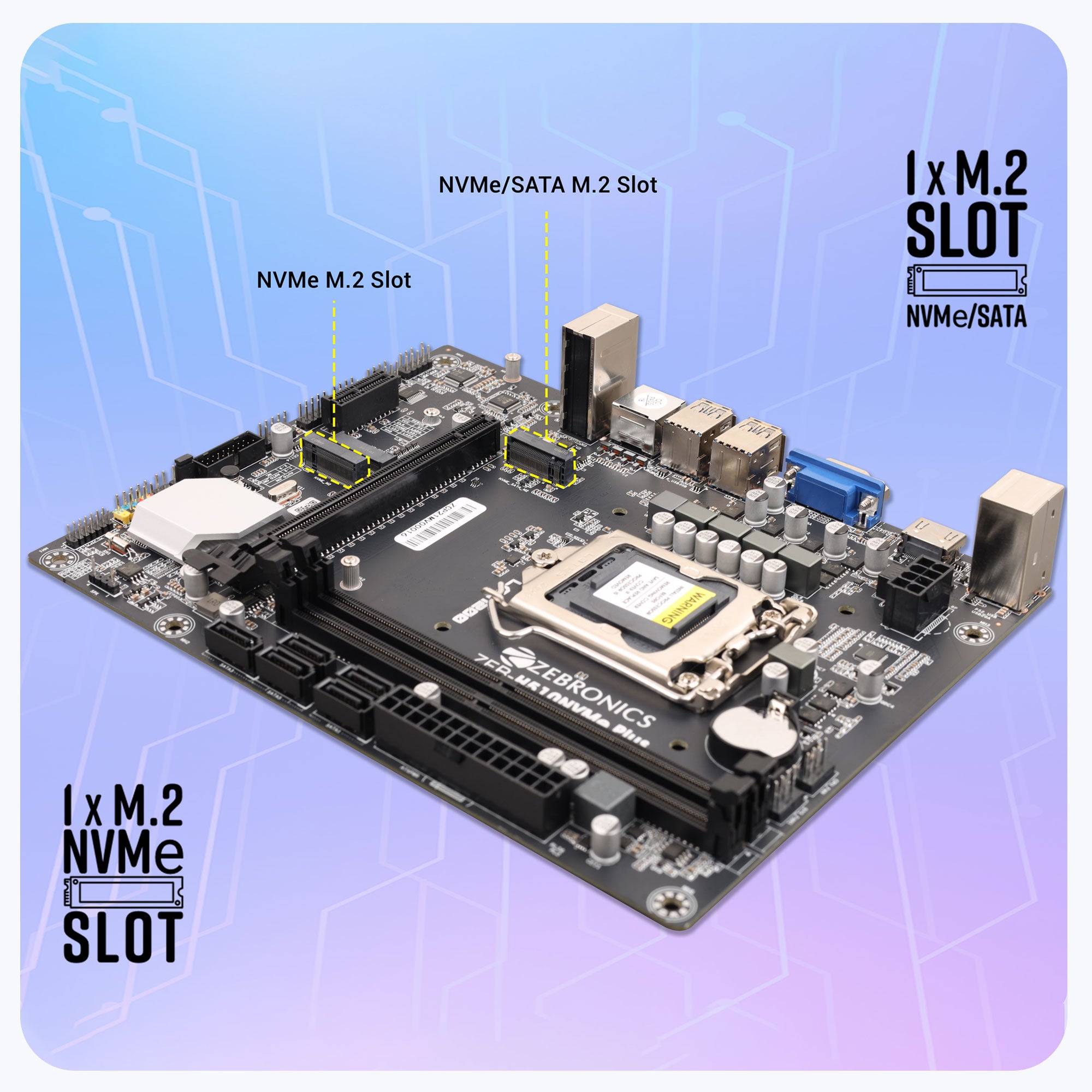

Expansion Slot	1 x PCI Express 4.0/3.0 x16 Slot*，1 x PCI Express 3.0 x1 Slot, 1 x M.2 for WIFI module, 1 x M.2 NVMe Slot, 1 x M.2 (NVMe/SATA) Slot
Form Factor	Micro-ATX
Net Dimension (W x D x H)	21.8 cm x 17 cm x 3.7 cm
Country of Origin	PRC
Package contents
Motherboard	1 U
SATA Cable	1 U
I/O Backplate	1 U
Driver Disc	1 U
	User Manual	1 U
