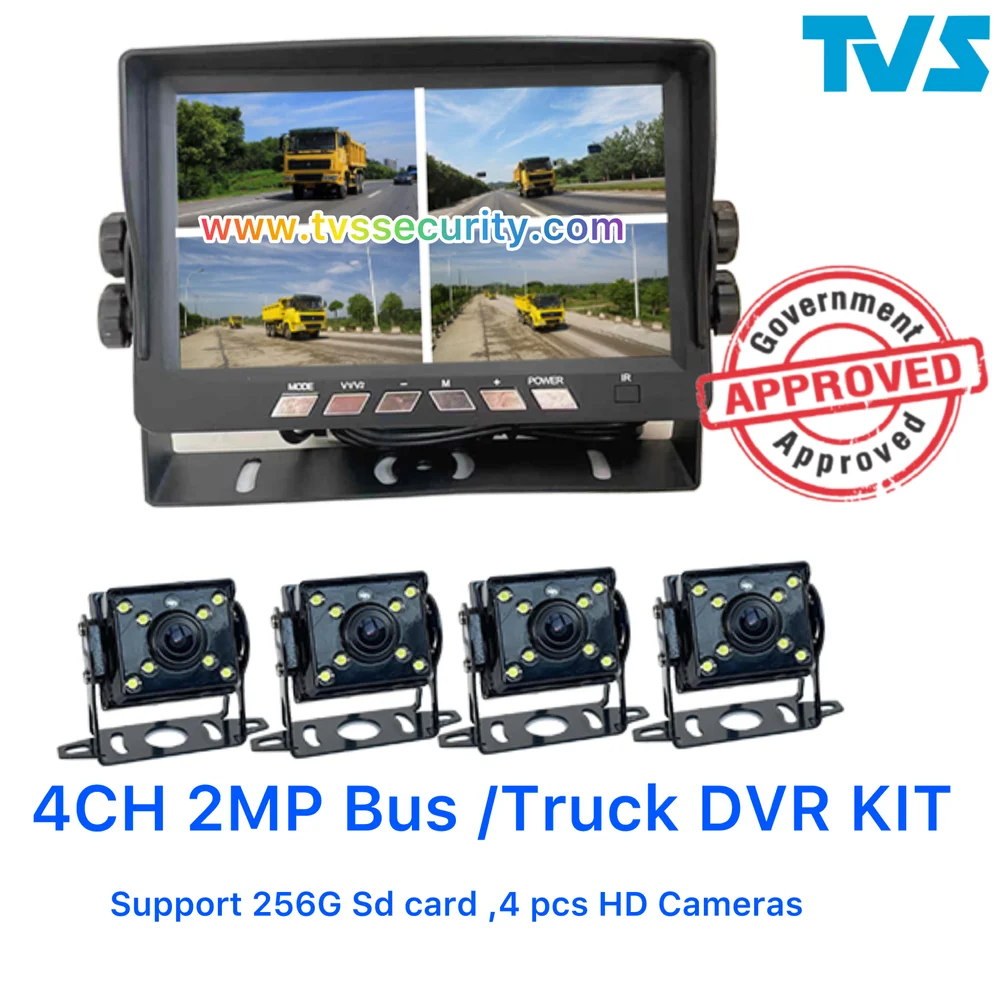

TVS-4MD-7 True Vision 4CH Monitor MDVR KIT, 1080p, CMOS
Product Description

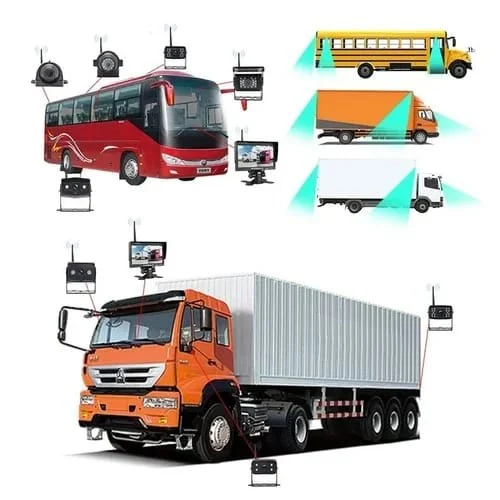

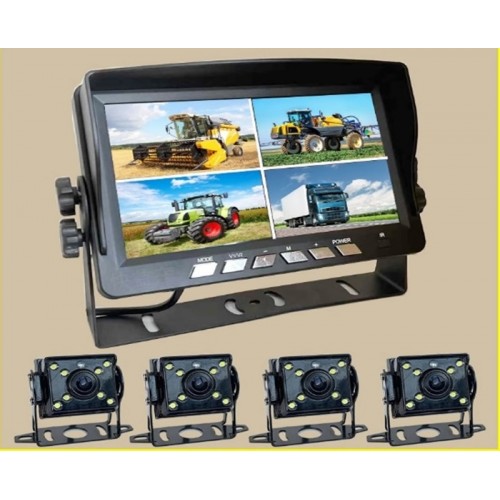

The TVS-4MD-7 (also listed as TVS-4MD-7W) is a 4-channel vehicle monitor + MDVR (Mobile Digital Video Recorder) system designed primarily for vehicle surveillance (e.g., trucks, buses, vans, taxis). It combines a dashboard display with recording functionality and includes cameras for 360° video capture.
Specifications
General
- Model: TVS-4MD-7
- Solution: Hi 3520 V300
- Special Feature: Anti Vibration
Video
- Video Compression: H.264
- Video Input: 4-channel AHD (1080P / 960P / 720P) + Aviation input
- Display Mode: 4CH / 2CH
- Supports full-screen mode for each channel
- Video Output Interface:
- 40-pin / 50-pin (TTL / LVDS)
- Resolution: 1024 × 600
- Output Resolution Options:
- 1920 × 1080
- 1280 × 720
- 1024 × 768
- 800 × 600
- Recording Quality: Ultra HD / HD / Standard / Ordinary (adjustable)
- Video Playback: Online playback
Storage
- Storage Capacity: 256 GB SD Card
Display
- Screen Size: 7 inches
- Panel Type: TFT TN / IPS
- Image Area: 154.21 (H) × 85.92 (V) mm
- Backlight: White light LED
- Brightness: 220 cd/m² (Typical)
- Interface: LVDS
- Menu Languages: Multiple
Power & Management
- Power Supply: 12V – 36V
- Power Consumption: 7W
- Power Management:
- Low voltage protection
- High voltage protection
Operating Conditions
- Working Temperature: -10°C to +70°C
- Storage Temperature: -20°C to +70°C
