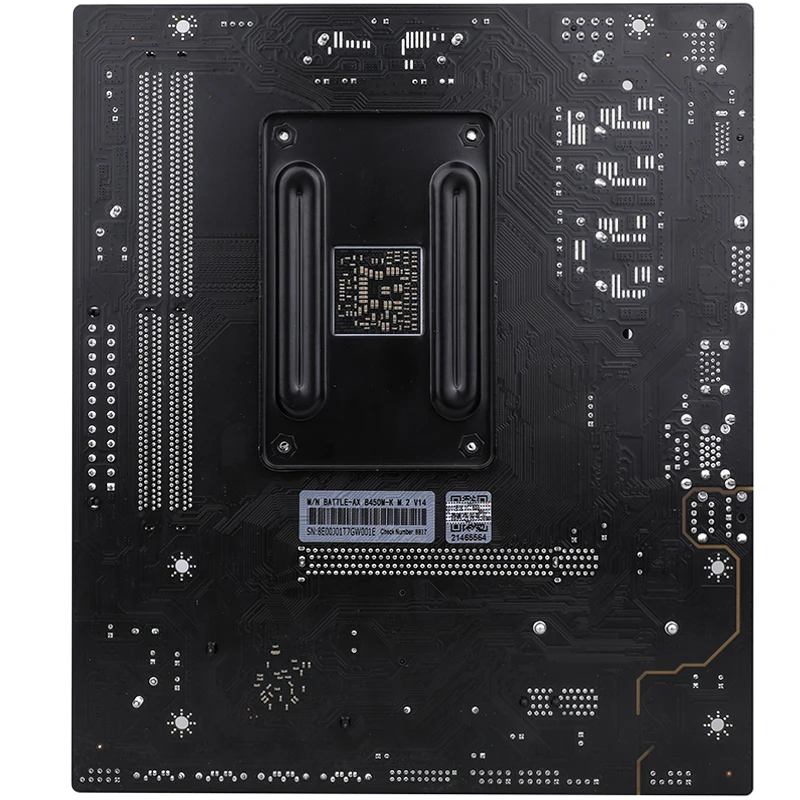

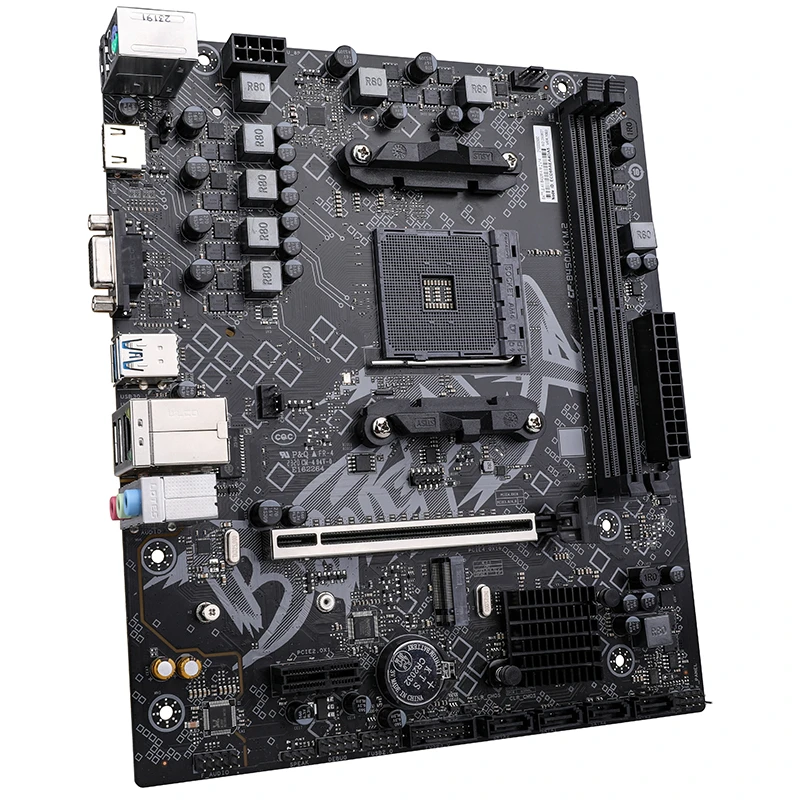

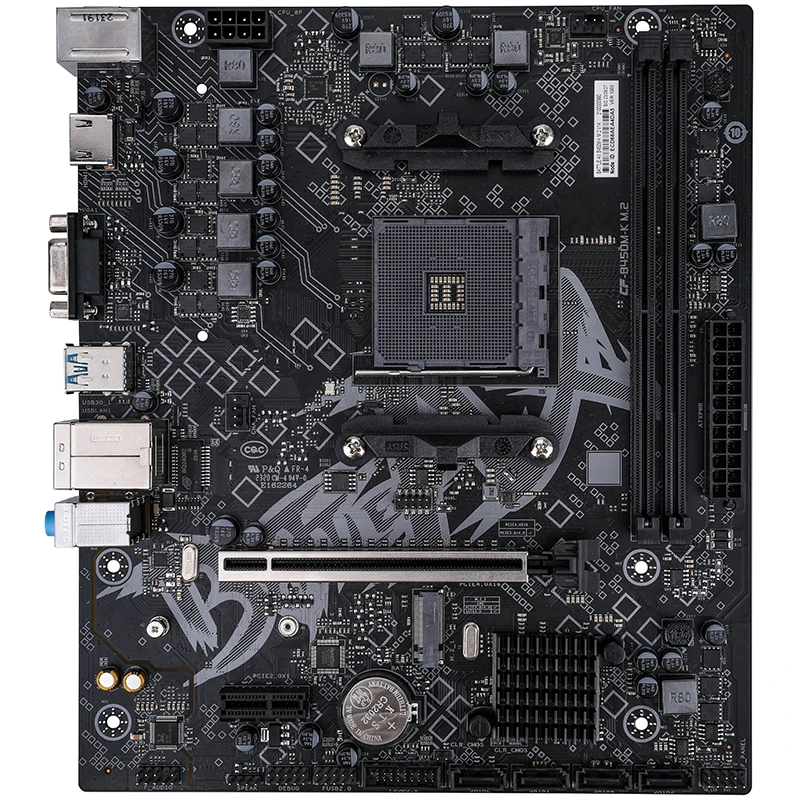

COLORFUL BATTLE-AX B450M-K M.2 V14 Desktop mother board

BATTLE-AX B450M-K M.2 V14

ModelBATTLE-AX B450M-K M.2 V14

Product SeriesBATTLE-AX series

ChipsetAMD B450

ProcessorSupports AMD Ryzen series processors that fit the AMD AM4 slot of the motherboard

Memory2 DDR4 memory sockets are provided, which can support up to 64GB of memory (a single socket can support up to 32 GB of memory)

- Support DDR4-4000(OC)/3733(OC)/3600(OC)/3466(OC)/3200(OC)/3000(OC)/2933(OC)/2800(OC)/2666/2400/2133MHz memory

- Support Extreme Memory Profile (XMP) memory technology

- Supports dual channel memory technology

SATA Ports1 M.2 slot and 4 SATA 6Gb/s hard disk interfaces

- M.2_1 slot: supports 2242/2280 M.2 SSD (PCIe 3.0 x4/SATA, CPU channel)

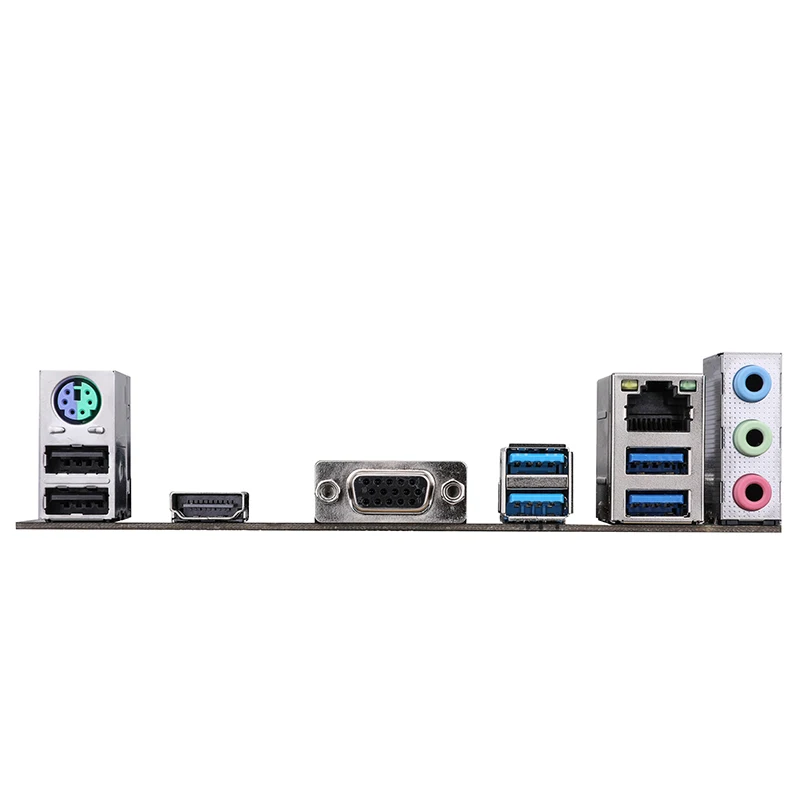

Board I/ORear I/O :

-2×USB 2.0 interfaces

-4×USB 3.2 Gen 1 Type-A interfaces

-1×HDMI 2.0 interface, Supports up to 4K 60Hz resolution

-1×VGA interface

-1×PS/2 interface

-1×Gigabit network interface

-3×Audio interfaces (audio input/audio output/microphone)

On board:

-1×CPU fan pin

-1×System fan pin

-1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces

-1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces

-1×Front audio pin

-1×Front panel pin

-1×Speaker pin

-1×Digital audio pin

-1×Clear CMOS jumper

-1×BIOS burner pin

-1×Debug light pin

-1×USB live control jumper

Expansion Slots1×PCIe 3.0 x16 slot

1×PCIe 2.0 x1 slot

BIOS128M UEFI, support multiple languages

Power ManagementSupport S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot

Hardware MonitorCPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring

LANRTL8111H Gigabit Network Card

AudioRealtek ALC897 high fidelity decoding chip, Support up to 7.1 channels

ConfigurationM-ATX

230mm x 197mm
